HYDRAULIC SYSTEM MANUFACTURER
Features & Details

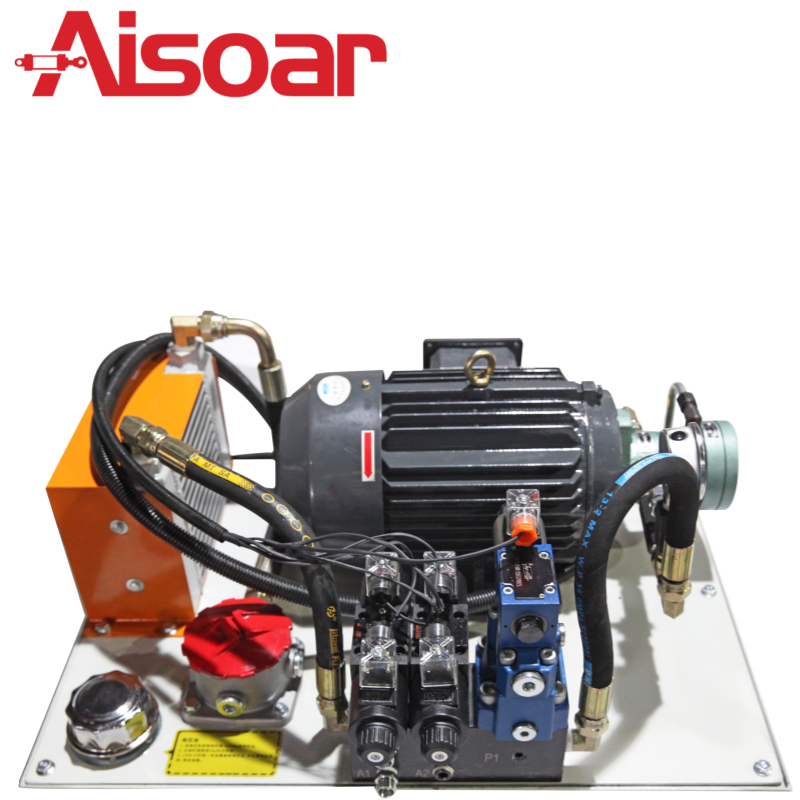

Key Structural Components:
- Electric Motor: Powers the hydraulic pump for stable and efficient operation.
- Hydraulic Pump: Delivers consistent high-pressure hydraulic flow for various machinery applications.
- Multi-way Directional Control Valves: Enable flexible control of multiple hydraulic circuits, supporting complex movement and multiple actuators.
- High-Performance Cooler (orange part): Provides superior heat dissipation, ensuring reliable performance under continuous operation.
- Independent Electric Control Box: Allows both automated and manual control of hydraulic circuits, featuring intuitive buttons, switches, and indicator lights for easy operation.
- Monitoring Instruments (Oil Level Gauge & Pressure Meter): Enable real-time monitoring of fluid levels and system pressure, helping operators maintain optimal working conditions.
Product Specification
Tailgate Fatigue Testing Hydraulic System
Power: 3.75kW
Flow Rate: 7L/min
Working Pressure: 22Mpa
Motor Voltage: 380V AC / 50Hz
Custom Hydraulic System
Aisoar also provides fully customizable hydraulic power units to meet specific project requirements. Customized hydraulic stations can be designed with varying power ratings, flow rates, working pressures, and control configurations to suit unique applications across construction, industrial automation, or special machinery. Options include different motor specifications (voltage, frequency, horsepower), specialized hydraulic pumps, multi-way valve arrangements, advanced cooling solutions, and integration with automation or remote-control systems.
| Supply Range | |
| HPU | Up to 120HP(90 kW) |
| Operating Pressure | Up to 7000PSl (50 Mpa) |
| Flow Rate | Up to 66 GPM (250L/min) |
| Oil Tank | Steel, Stainless & Aluminum |
| Pumps | Hydraulic pumps, hand pumps are available |
| Valves | Solenoid or manual control valves are available, a wide range ofvalve options can alsobeconfigured based on your applicatior |
| Motor | AC/DC motors are available, Explosion-proof motors, inverter motors |
| Cylinder style | Double acting cylinders, Single acting cylinders,Sensor cylinders, servo cylinders |
Solution
NO. AS-1001

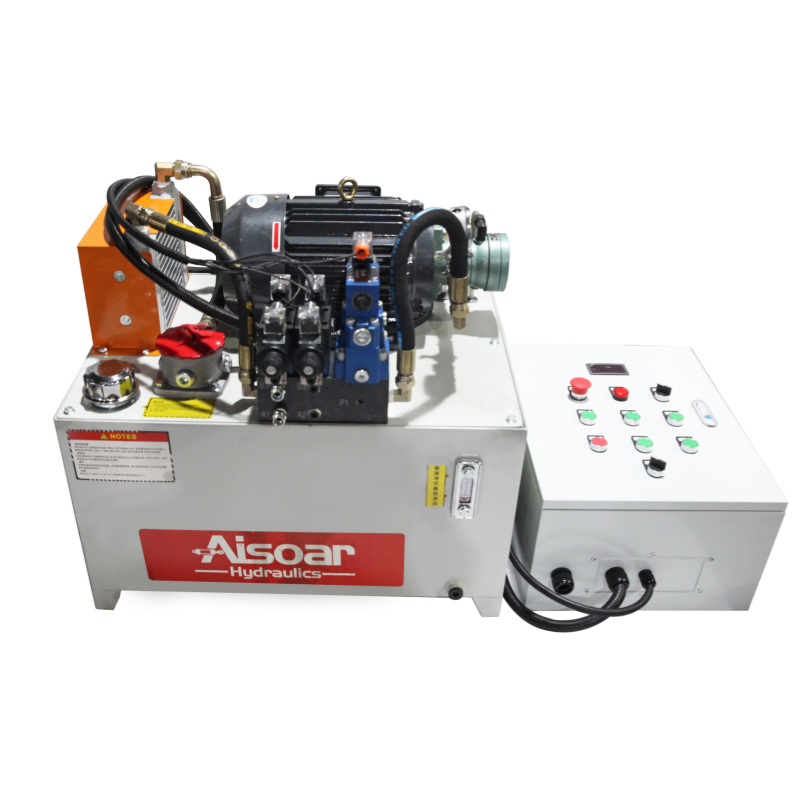

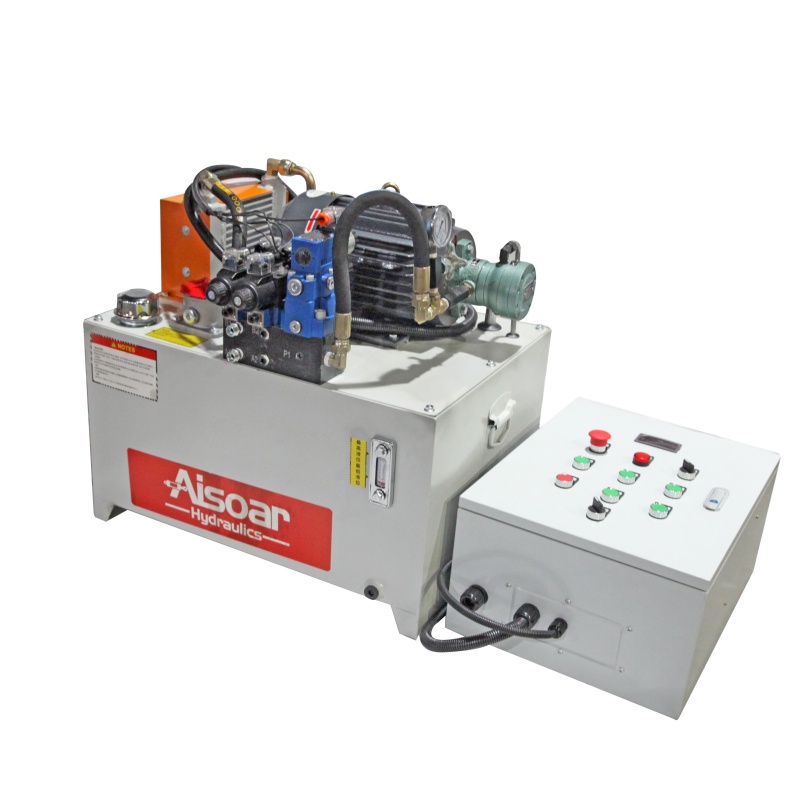

TAILGATE FATIGUE TESTING HYDRAULIC SYSTEM
AiSoar Tailgate Fatigue Testing Hydraulic System is a compact, integrated power system for small construction/industrial equipment. It combines motor, pump, multi-way valves, cooler and electric control box, supporting multi-path output to drive multiple actuators (cylinders, motors) at once.
With real-time monitoring gauges, its intuitive control panel enables easy operation (start/stop, switching). High-integration and flexible to install, it reliably powers multi-action devices like small loaders or hydraulic fixtures.
