How Does a Mini Hydraulic Power Unit Work?

Main Components of a Mini Hydraulic Power Unit

Before understanding the working process, it is important to know the major components.

---

How Does a Mini Hydraulic Power Unit Work?

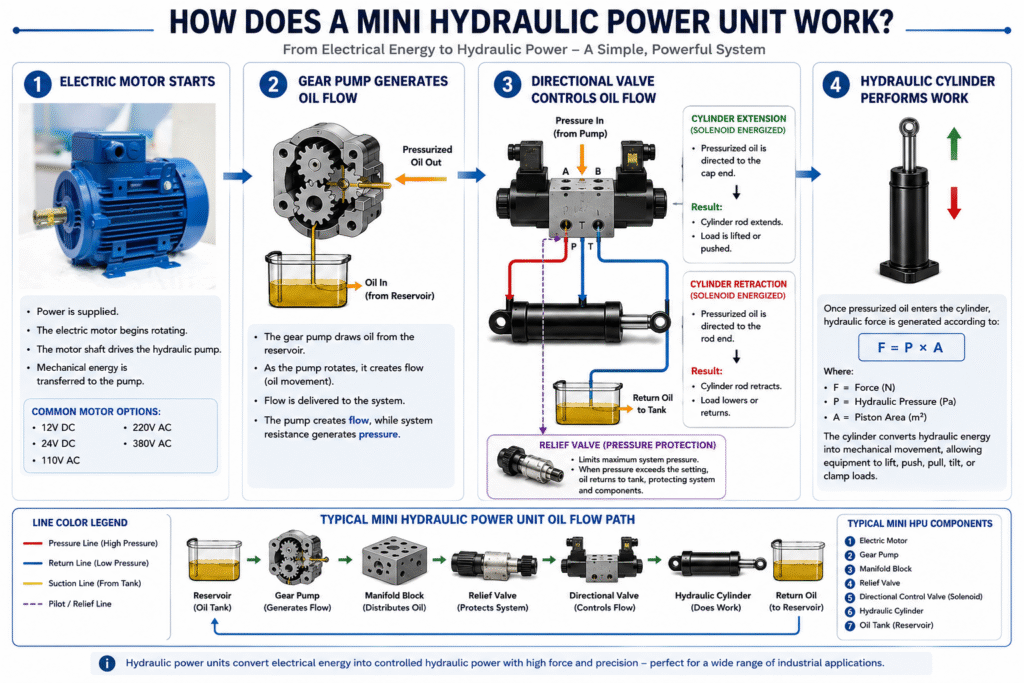

The working process can be divided into four basic steps.

Step 1: Electric Motor Starts

When power is supplied:

• The electric motor begins rotating.
• The motor shaft drives the hydraulic pump.
• Mechanical energy is transferred to the pump.

Depending on the application, the motor may be:

12V DC / 24V DC / 110V AC / 220V AC / 380V AC

Step 2: Hydraulic Pump Generates Oil Flow

As the pump rotates:

• Hydraulic oil is drawn from the reservoir.
• The pump pressurizes the oil.
• Pressurized oil enters the manifold block.

The hydraulic pump creates flow, while system resistance generates pressure.

Step 3: Directional Valve Controls Oil Flow

The hydraulic oil then passes through the directional control valve.

The valve determines:

• Where the oil flows
• Which port receives pressure
• Whether the actuator extends or retracts

For example:

Cylinder Extension

The solenoid valve directs oil to:

• Cylinder cap end

Result:

• Cylinder rod extends
• Load is lifted or pushed

Cylinder Retraction

The valve switches position and directs oil to:

• Cylinder rod end

Result:

• Cylinder retracts
• Load lowers or returns

Step 4: Hydraulic Cylinder Performs Work

Once pressurized oil enters the cylinder:

Hydraulic force is generated according to:

$F=P\times A$

Where:

• F = Force
• P = Hydraulic Pressure
• A = Piston Area

The cylinder converts hydraulic energy into mechanical movement, allowing equipment to lift, push, pull, tilt, or clamp loads.

---

Single-Acting vs Double-Acting Mini Hydraulic Power Units

Feature	Single-Acting Hydraulic Power Unit	Double-Acting Hydraulic Power Unit
Working Principle	Hydraulic pressure extends the cylinder; gravity or external force retracts it.	Hydraulic pressure controls both extension and retraction.
Cylinder Ports	One hydraulic port	Two hydraulic ports
Retraction Method	Gravity, spring, or external load	Hydraulic pressure
Control Precision	Basic control	More precise control
Hydraulic Circuit	Simpler	More complex
Installation Cost	Lower	Higher
Hydraulic Lines Required	Fewer hydraulic lines	More hydraulic lines
Energy Consumption	Lower	Slightly higher
Typical Applications	Dump trailers, lift tables, dock levelers, snow plows	Car lifts, industrial machinery, agricultural equipment, material handling systems
Advantages	Simple design, lower cost, easier maintenance	Better control, higher efficiency, suitable for heavy-duty operations
Best For	Applications where gravity-assisted return is available	Applications requiring powered movement in both directions

---

How to Select the Right Mini Hydraulic Power Unit

When choosing a mini hydraulic power unit, consider:

Proper sizing ensures optimal performance and longer service life.

---

Conclusion

A mini hydraulic power unit works by converting electrical energy into hydraulic energy through an electric motor and hydraulic pump. Pressurized hydraulic oil is directed through valves to drive cylinders or motors, creating the force needed for lifting, pushing, pulling, and positioning loads.

Thanks to their compact size, reliable performance, and customization flexibility, mini hydraulic power units have become the preferred hydraulic solution for equipment manufacturers across industries such as material handling, agriculture, transportation, and industrial automation.
