Products
HYDRAULIC POWER UNIT PACKS Manufacturer
Features & Details
-
3200 PSI Max Relief on Port A – Provides reliable lift power for heavy loads
-
2.5 GPM Internal Flow Control Valve – Pre-installed, pressure-compensated for smooth descent
-
Durable Poly Reservoir – Available in 4, 5, 6, 8, or 13 quart (standard and square)
-
15-Foot Handheld Remote Pendant – Long reach for convenient trailer-side operation
-
Horizontal Mount Configuration – Easy to integrate into most builds
-
Corrosion-Resistant Design – Withstands exposure in rugged trailer applications
-
1-Year Manufacturer Warranty – Backed by AiSoar Hydraulics support
-
3 HP (2.2 kW) Motor – Delivers higher performance than industry-standard 1.6–2.0 kW motors

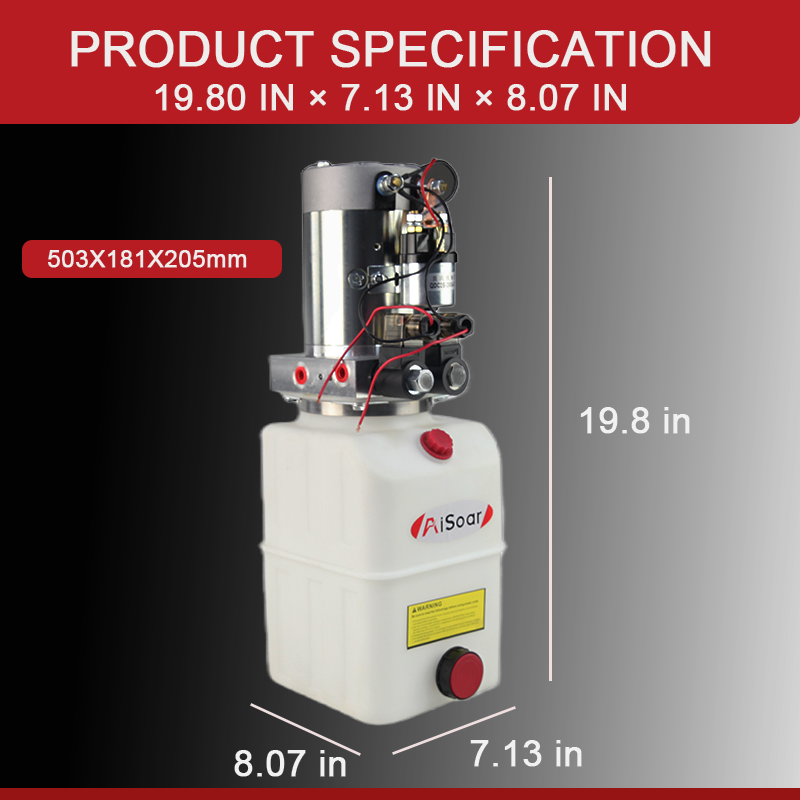

Product Specification

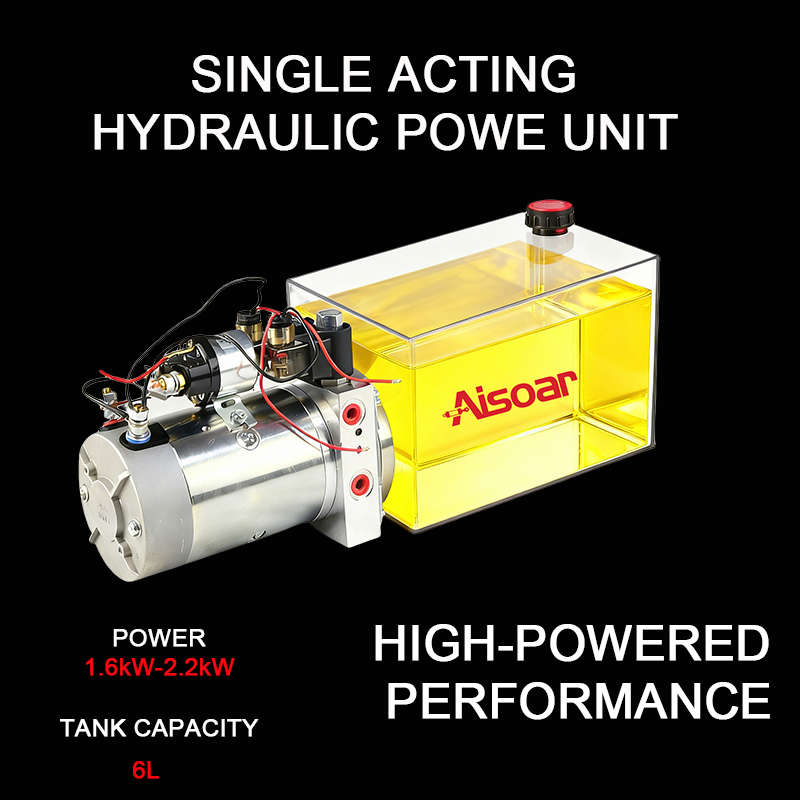

DUMP TRAILER MINI POWER UNIT PACKS MODEL:
| Type/Function | Voltage | Power | Rotating Speed | Displacement | Operation Pressure | Flow rate | Tank Capacity | Oil Port | Net weight | Product Dimensions |
| Single-acting | DC12V | 1.6kW | 2500 | 2.1cc/r | 16MPa | 5L/min | 5L | G3/8 | 11.5 | 503x181x205 |
| Single-acting | DC24V | 2.2kW | 2700 | 2.6cc/r | 20MPa | 7L/min | 6L | G3/8 | 12 | 548x181x205 |
Solution
NO. AS-1001

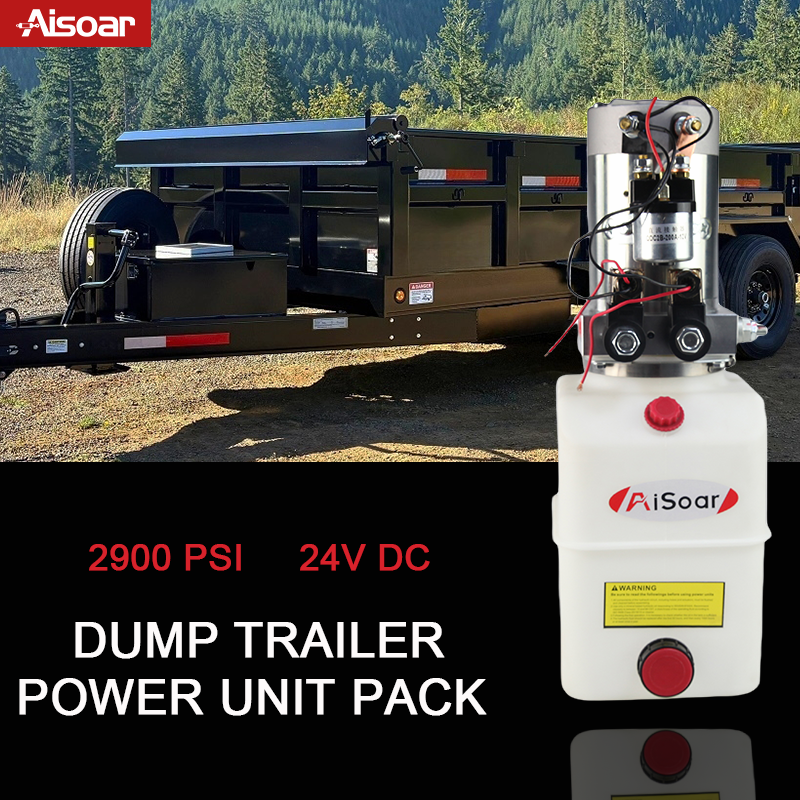

DUMP TRAILER HYDRAULIC MINI POWER PACK

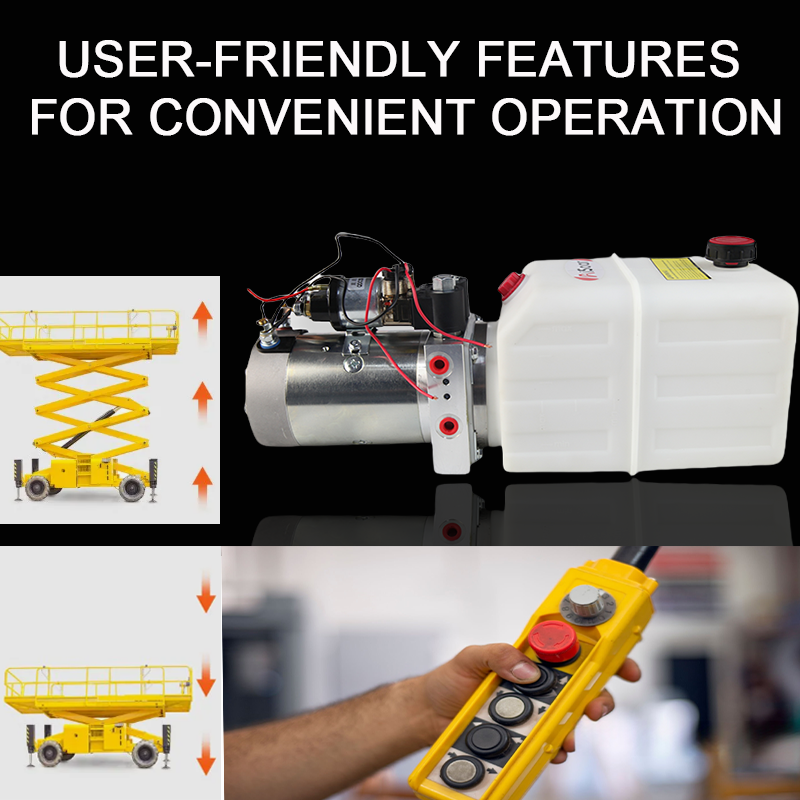

The AiSoar 12V single-acting hydraulic mini power pack features a motor delivering up to 3 horsepower (2.2 kilowatts), surpassing most standard 12V trailer pumps in both torque and flow rate. This high-output device is engineered for power-up/gravity-down operations, offering a compact design for easy installation and utilizing a corrosion-resistant polymer reservoir—ideal for applications such as dump trailers, lift gates, and marine lifts.
