HYDRAULIC POWER UNIT PACKS Manufacturer

Features & Details

Powered by a high-torque electric motor for robust and efficient performance
CE certified and ISO 9001 compliant for superior safety and quality assurance
Compatible with both 2-post and 4-post lift systems
Designed to operate lifts with capacities up to 12,000 pounds
Engineered with a pressure-balanced design for optimal efficiency
Effortless lift raising with simple push-button activation
Lowering speed is easily adjustable manually for enhanced user control
Features a low-leakage poppet valve design to minimize fluid loss
Equipped with a 4.0-gallon US standard vertical reservoir for optimal fluid management
Relief valve preset at 2,750 PSI for safe and consistent operation

Product Specification

CAR LIFT HYDRAULIC MINI POWER PACKS MODEL

HPU-2.2S-2P-A220-2.1-18-VP/10-Y6-G3/8

HPU-2.2S-2P-A220-2.6-16-VP/12-Y6-G3/8

HPU-2.2T-2P-A380-2.1-18-VP/10-Y6-G3/8HPU-2.2T-2P-A380-2.6-16-VP/12-Y6-G3/8

Type/Function	Voltage	Power	Rotating Speed	Displacement	Operation Pressure	Flow rate	Tank Capacity	Oil Port	Net weight	Product Dimensions
Single-acting	AC220V	2.2kW	2850	2.1cc/r	18MPa	6L/min	10L	G3/8	21	714x178x283
Single-acting	AC220V			2.6cc/r	16MPa	7L/min	12L	G3/8	21.5	819x178x283
Single-acting	AC380V			2.1cc/r	18MPa	6L/min	10L	G3/8	21	714x178x283
Single-acting	AC380V			2.6cc/r	16MPa	7L/min	12L	G3/8	21.5	819x178x283

Solution

NO. AS-1001

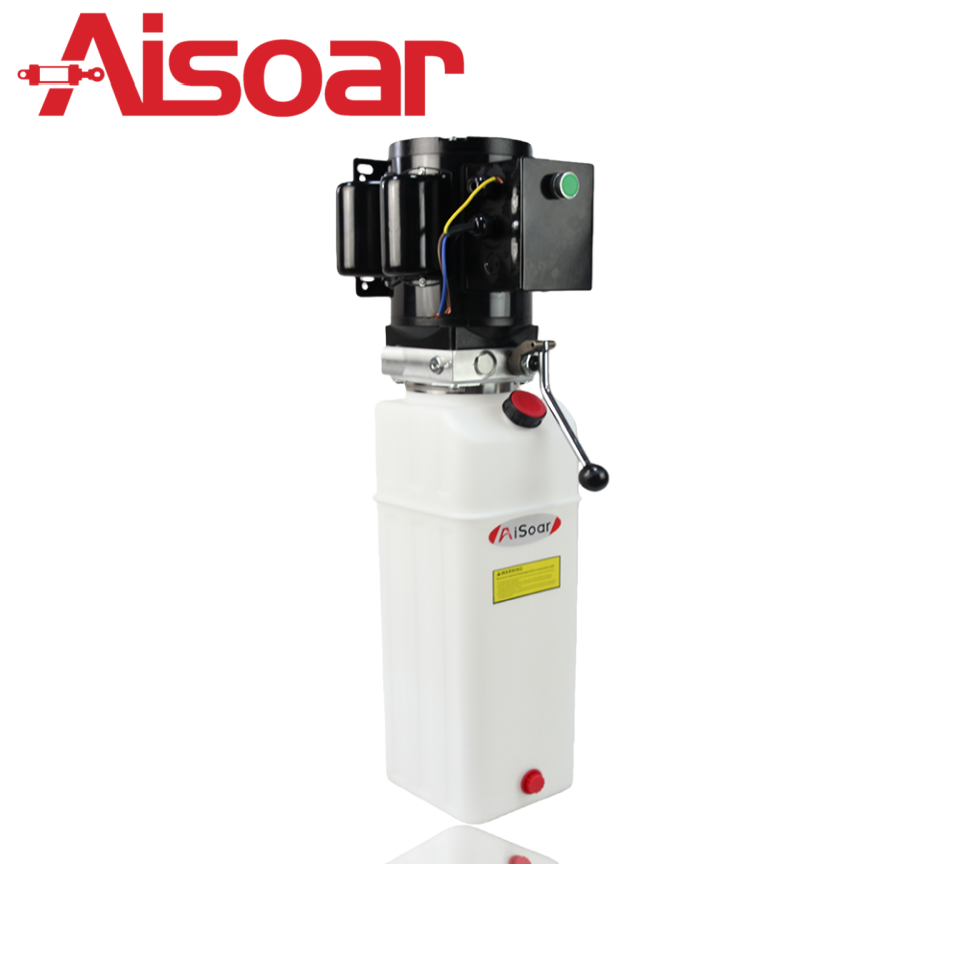

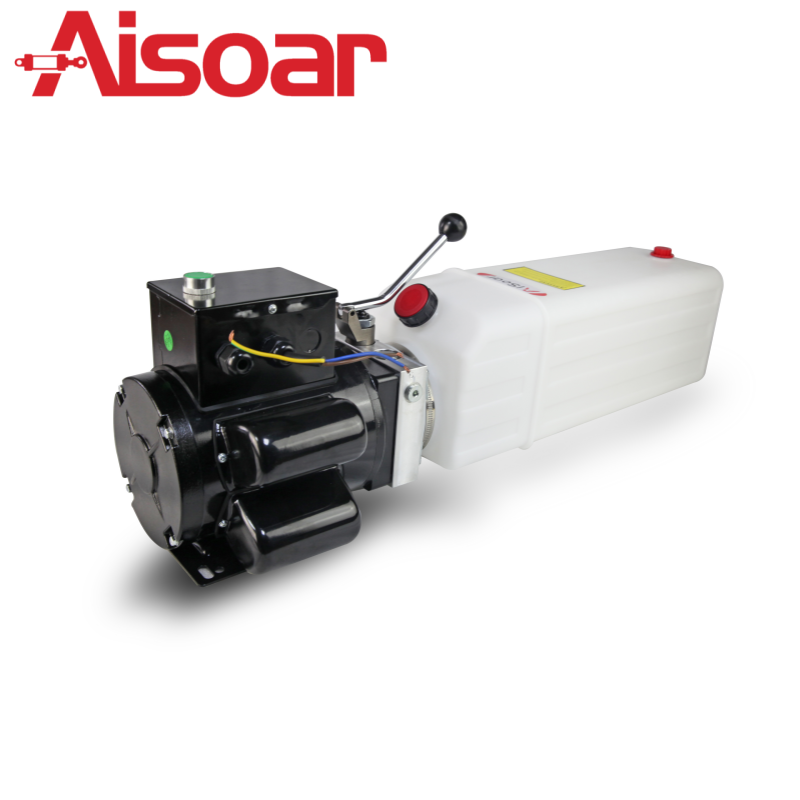

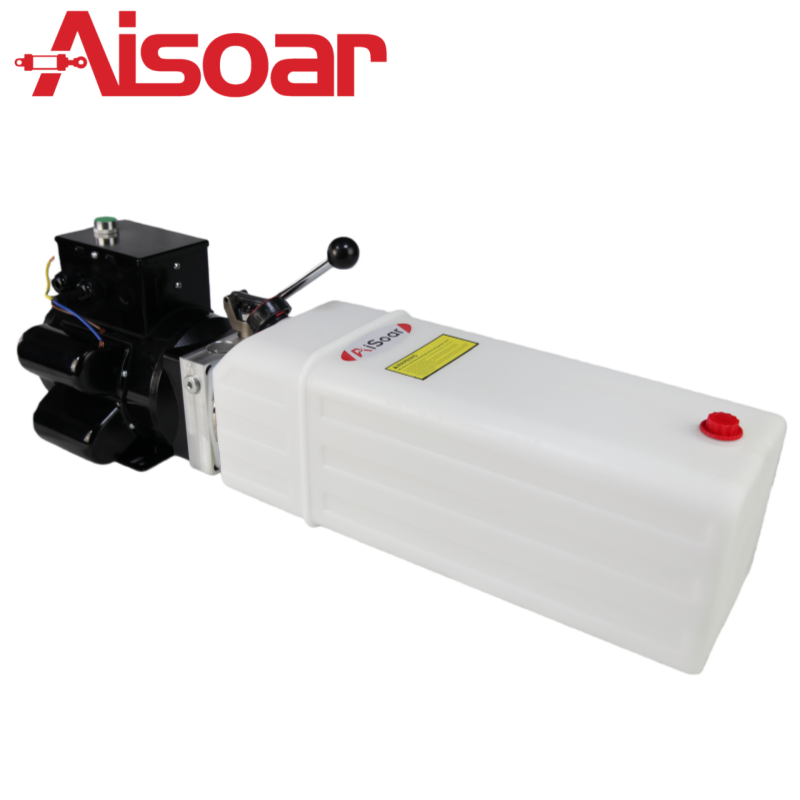

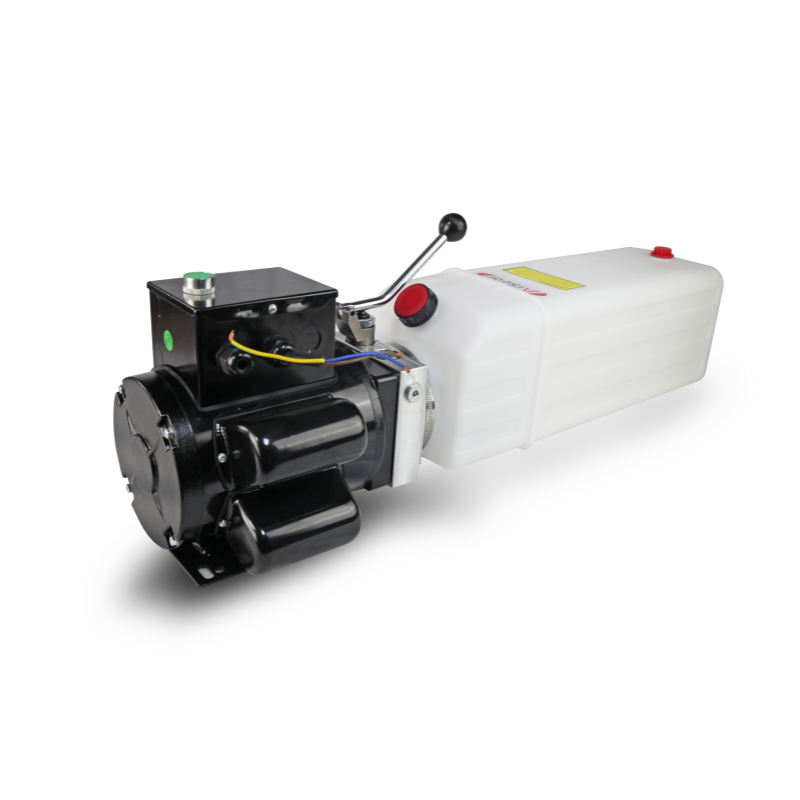

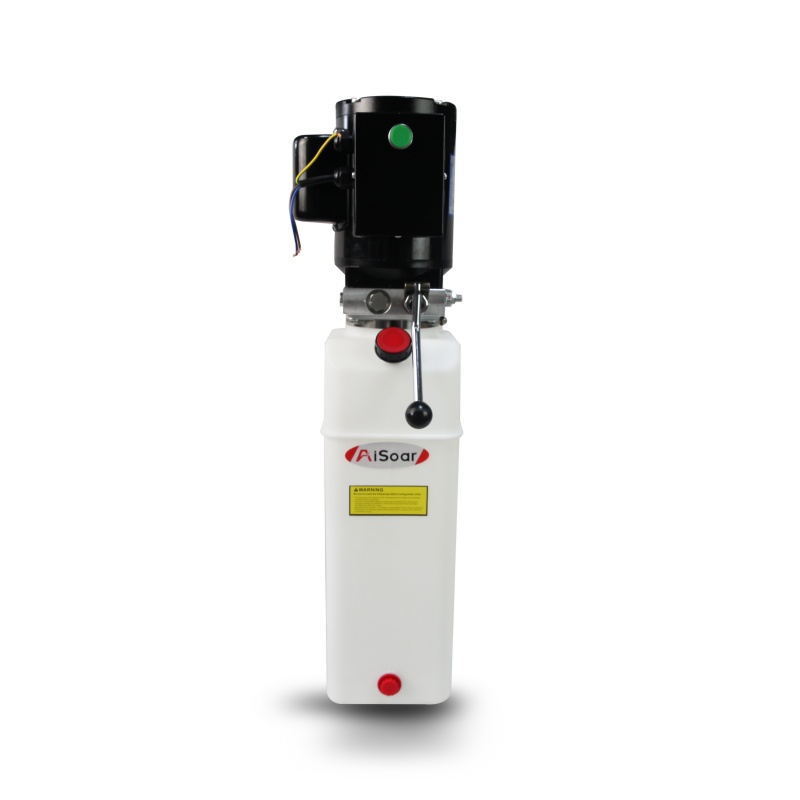

CAR LIFT HYDRAULIC MINI POWER PACK

Single acting hydraulic power mini pack , available in both AC220V and AC380V versions with 2.2kW motors, feature 2.1cc/r or 2.6cc/r pump displacement and max working pressures of 16–18MPa. Flow rates are 6–7L/min; tank capacities are 10L or 12L. All models support power up, gravity down operation and are equipped with G3/8 oil ports and pre-set pressure relief valves for safe use, making them ideal for single-acting cylinder systems such as lift gates and other hydraulic lifting equipment.
