HYDRAULIC MINI POWER PACK MANUFACTURER
Features & Details
- AC Power Adaptability: Driven by 220V/380V mains power, no additional batteries required, ideal for long-term operation in fixed scenarios.
- Compact Integration: Integrates motor, pump, oil tank, and valve group into one unit, small in size and saves equipment installation space.
- Specialized for Light Loads: Delivers stable output pressure (typically 10-16MPa) with moderate power, suitable for small-tonnage hydraulic actions (e.g., lifting, clamping).
- Easy Maintenance: Modular structure with clear interfaces for valve groups and oil tanks, simplifying daily oil changes and inspections.
Product Specification
HPU-1.1T-4P-A380-2.1-18-HS/3-Y2-G3/8
HPU-1.1S-4P-A220-2.1-18-HS/3-Y2-G3/8
HPU-1.5T-4P-A380-4.2-18-HS/6-Y2-G3/8
HPU-2.2T-4P-A380-5.8-18-HS/6-Y2-G3/8
| Type/Function | Voltage | Power | Rotating Speed | Displacement | Operation Pressure | Flow rate | Tank Capacity | Oil Port | Net weight | Product Dimensions |
| Single-acting | AC380V | 1.1kW | 1400 | 2.1cc/r | 20MPa | 3L/min | 3L | G3/8 | 21 | 636x185x242 |
| Single-acting | AC220V | 3L/min | G3/8 | 21 | 636x185x242 | |||||
| Single-acting | AC380V | 1.5kW | 4.2cc/r | 6L/min | 6L | G3/8 | 22 | 636x185x242 | ||
| Single-acting | 2.2kW | 5.8cc/r | 8L/min | G3/8 | 22 | 716x185x242 |
Solution
NO. AS-1001

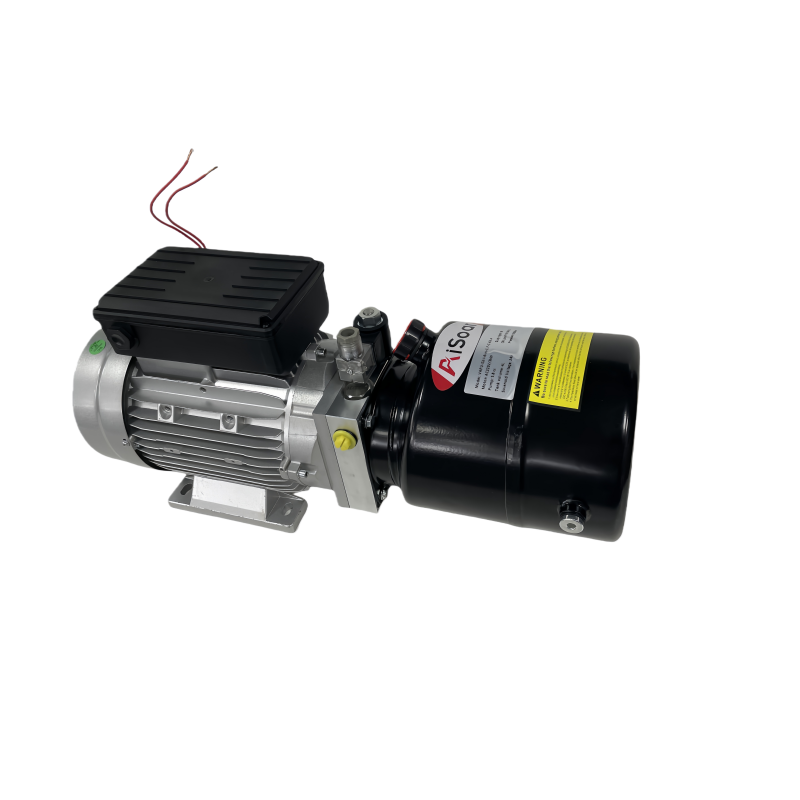

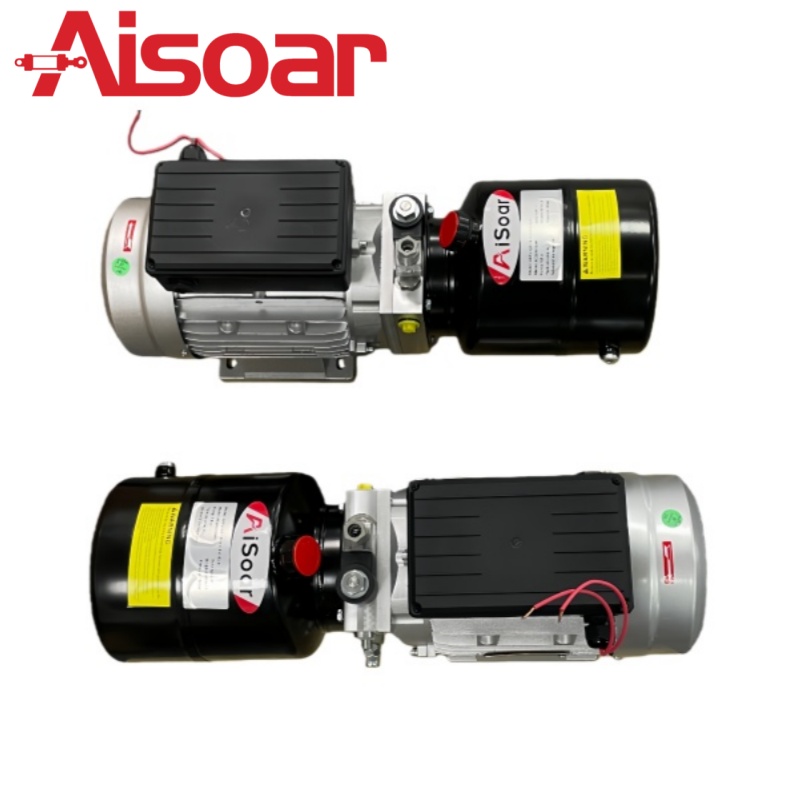

Work platform HYDRAULIC MINI POWER PACK
The hydraulic power unit is specially designed for the hydraulic lifting platform and is integrated by high-pressure gear pump, AC motor, central valve block, cartridge valve and oil tank. Start the motor to realize the rise and fall of the platform. Open the solenoid valve to fall by self weight. The built-in pressure compensation valve can realize the uniform drop of no-load and load.
