AUTOMATIVE CANVAS HYDRAULIC MINI POWER PACK

Products

HYDRAULIC POWER UNIT PACKS Manufacturer

Features & Details

Compact Integrated Design
Detail: Integrates motor, pump, oil tank and valve group into one unit, with a built-in mounting bracket to save equipment space.
DC-Driven Compatibility
Detail: Typically supports 12V/24V DC power supply, matching the power systems of vehicles and small equipment.
Double-Action Control
Detail: Equipped with solenoid directional valves, enabling “extend/retract” bidirectional movements of hydraulic cylinders to meet reciprocating motion needs.
Stable Pressure & Low Noise
Detail: Adopts small gear pumps/ vane pumps, with a working pressure of 10-21MPa; operates with lower noise than conventional industrial power units.
Modular Maintenance
Detail: Valve groups and pipe joints use plate/threaded connections; valve components and pumps can be replaced individually, reducing maintenance costs.

Product Specification

HPU-1.6-D12-3.15-16-HS/5-Y19-G1/4
HPU-1.6-D24-3.15-16-HS/5-Y19-G1/4

Type/Function	Voltage	Power	Rotating Speed	Displacement	Operation Pressure	Flow rate	Tank Capacity	Oil Port	Net weight	Product Dimensions
Double-acting	DC12V	1.6kW	1500	3.2cc/r	16MPa	4.8L/min	5L	G1/4	14	440x210x300
Double-acting	DC24V	1.6kW	1500	3.2cc/r	16MPa	4.8L/min	5L	G1/4	14	440x210x300

Solution

NO. AS-1001

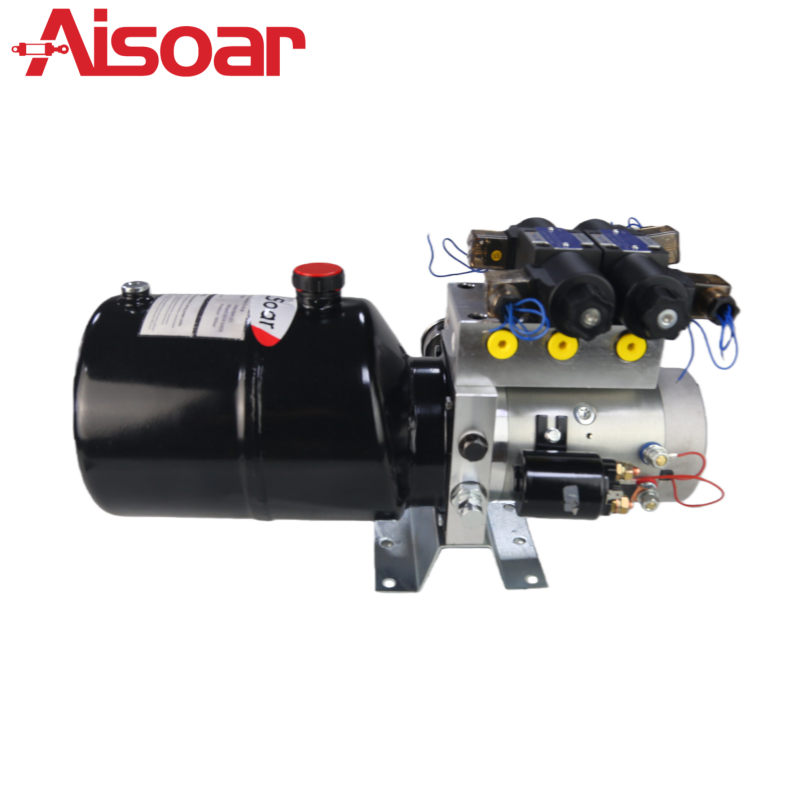

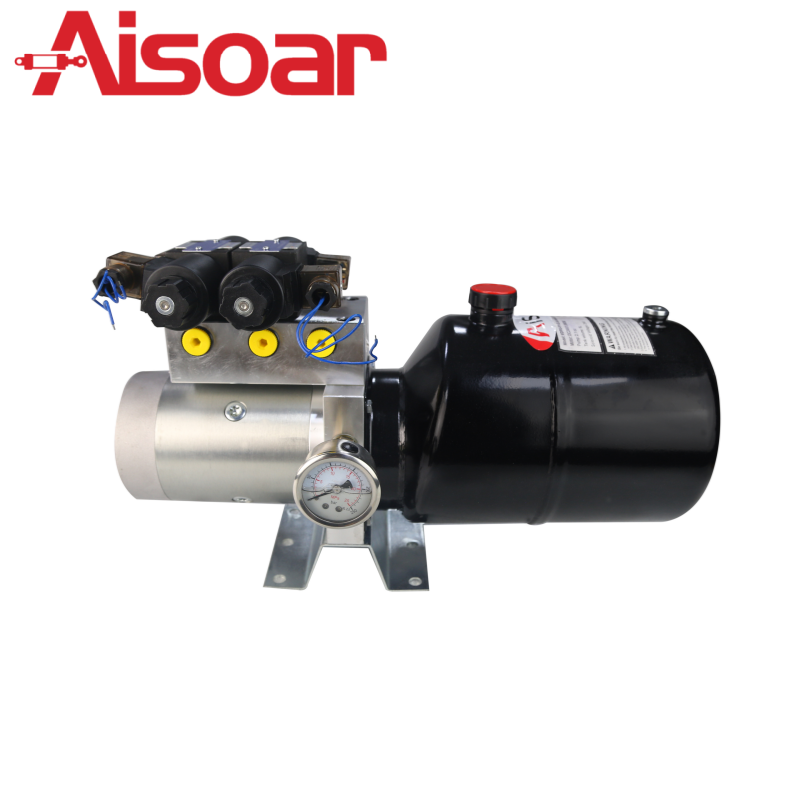

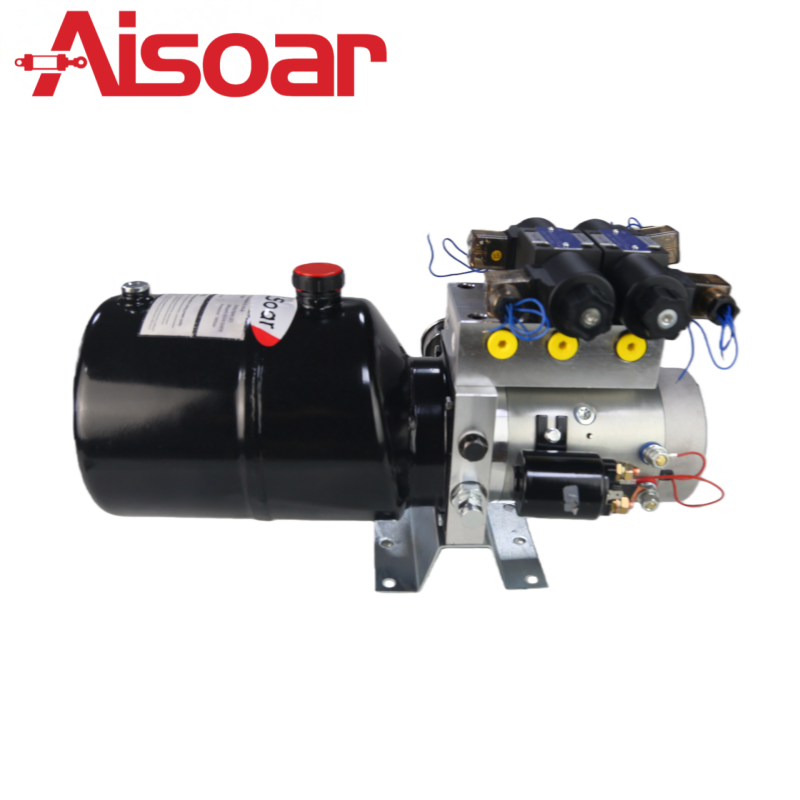

AiSoar compact DC hydraulic power unit (12V/24V) integrates motor, pump, oil tank and solenoid valve group in one. With 10-21MPa stable pressure, low noise and modular design for easy maintenance, it enables smooth bidirectional cylinder movements. Ideal for small construction/agricultural machinery, vehicle modifications, logistics equipment and medical tools—offering reliable, space-saving hydraulic power.
