OEM Hydraulic Testing Machine

Products

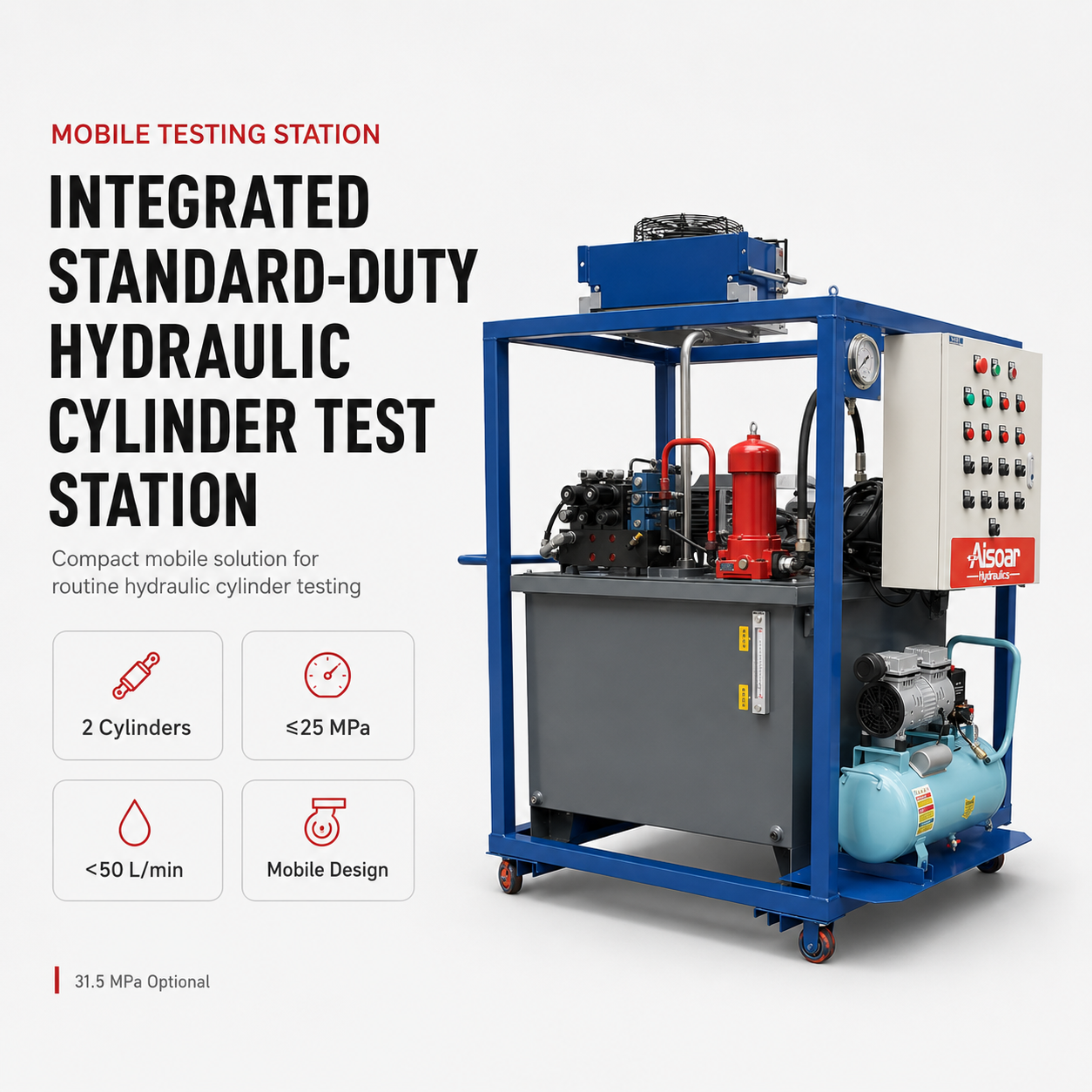

Compact and Movable Testing Solution for Standard Hydraulic Cylinder

Features & Details

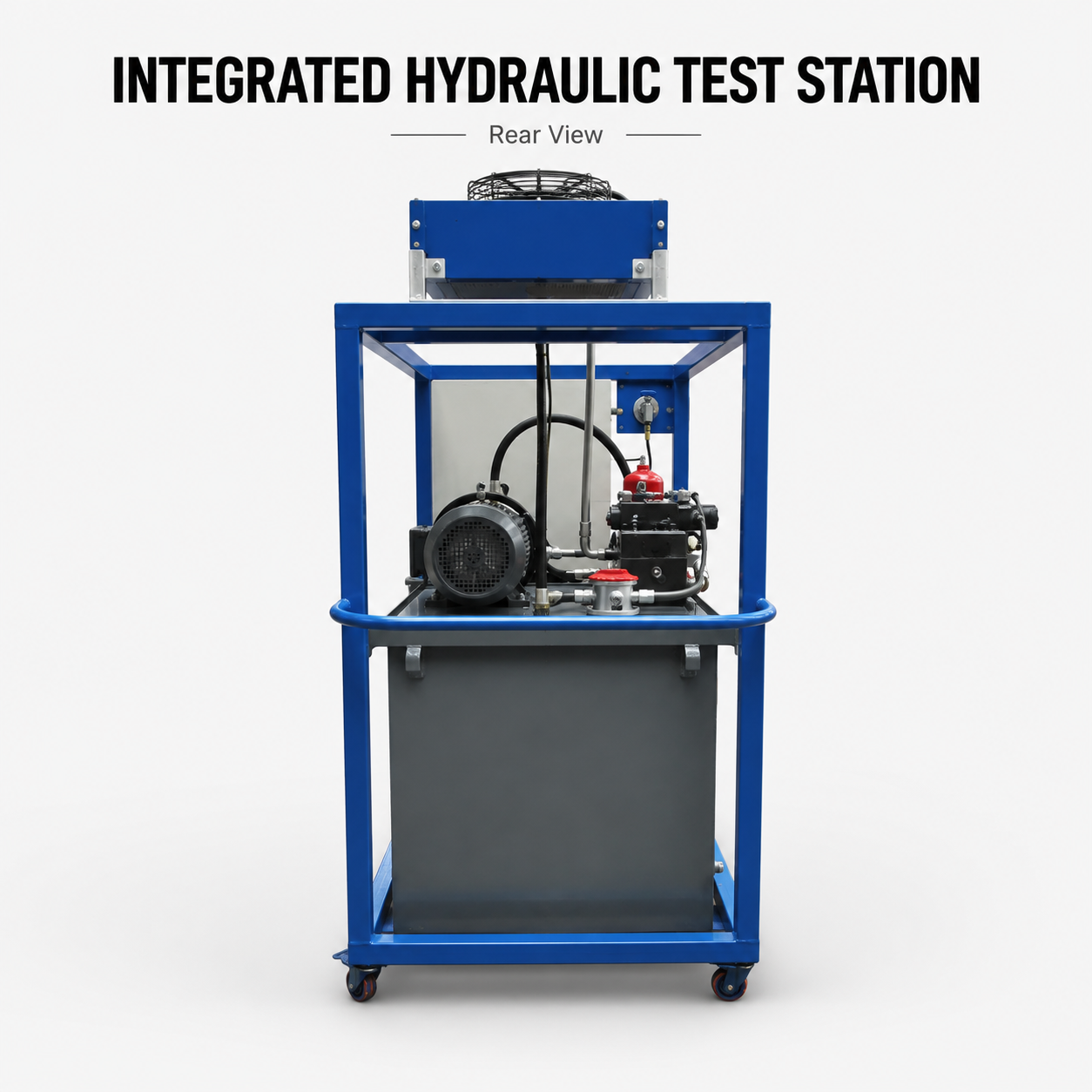

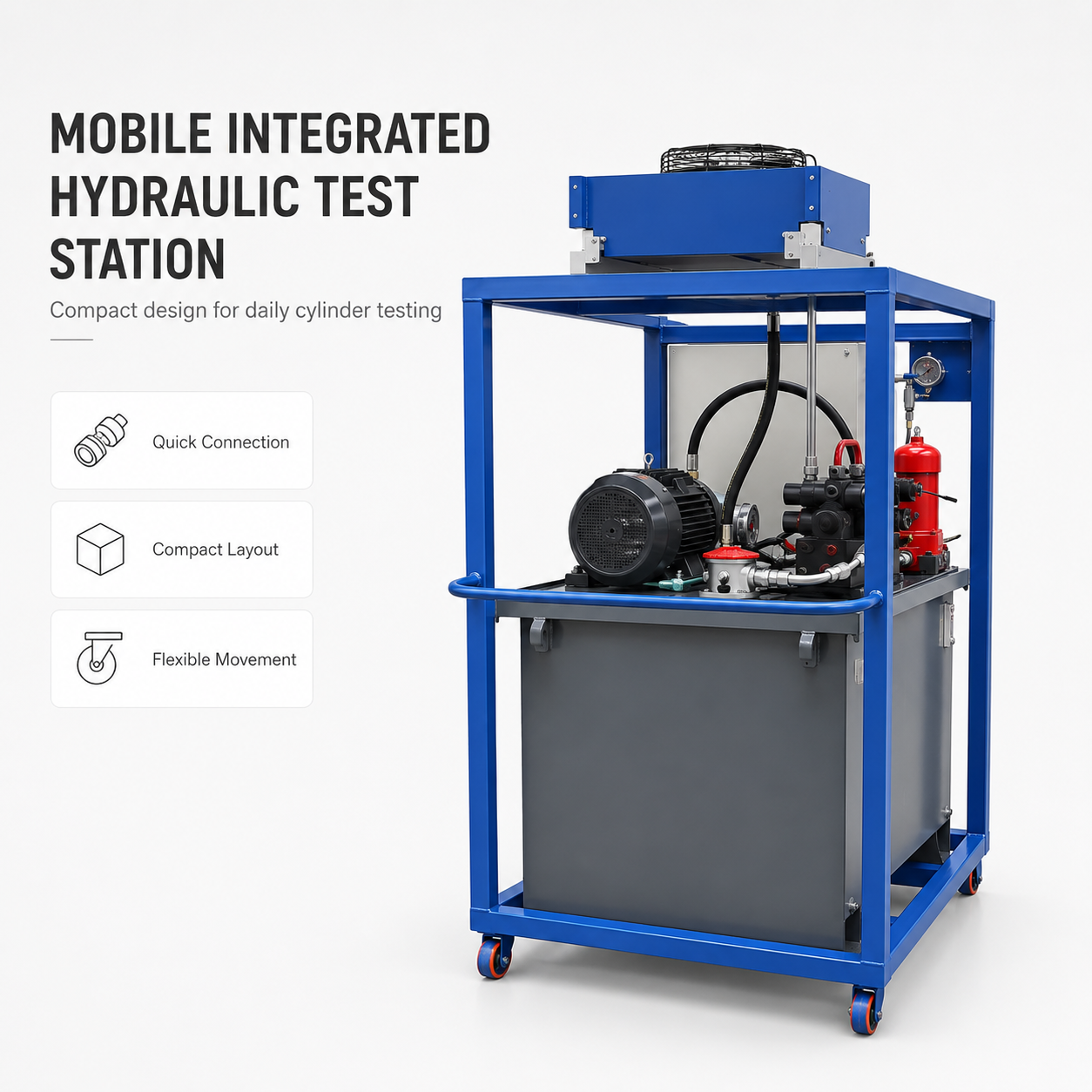

The Standard Integrated Hydraulic Cylinder Test Station is designed for hydraulic cylinder manufacturers, repair workshops, maintenance centers, and quality inspection departments that need a reliable and easy-to-operate testing system for standard hydraulic cylinders. This model integrates the hydraulic power unit, pressure control, cooling system, filtration system, quick coupling connection, and manual control circuit into one movable structure. It is suitable for double-acting cylinder testing, pressure holding tests, leakage inspection, and cylinder movement verification.

Product Specification

Standard Configuration & Optional Upgrades

Category	Standard Configuration	Optional Upgrade
Simultaneous Test Quantity	2 cylinders	2–4 cylinders
Cylinder Bore Range	＜100 mm	Customized according to cylinder size
Cylinder Type	Double-acting hydraulic cylinder	Customized test circuit available
Working Pressure	≤25 MPa	Up to 31.5 MPa
Flow Rate	＜50 L/min	Customized flow rate available
Structure Type	Movable type with bottom casters	Customized structure available
Pipeline Connection	Quick coupling connection	Customized connection interface available
Cooling Method	Integrated air cooler	Independent water-cooling circuit
Filtration Method	Integrated filter	Customized filtration system available
Control Method	Push-button control + manual circuit	PLC control available
Automation Level	Manual operation	Semi-automatic or fully automatic operation
Monitoring Function	Temperature & oil level monitoring	Pressure monitoring available

This test station can be customized according to cylinder size, working pressure, flow rate, control method, cooling method, monitoring requirements, and testing process. PLC control, servo motor, proportional valve, pressure monitoring, and automatic testing functions are available for customized projects.

Solution

How Is This Model Different?

Model	Best For	Main Difference
Standard Integrated Hydraulic Cylinder Test Station	Routine hydraulic cylinder testing	Compact, movable, standard pressure and flow

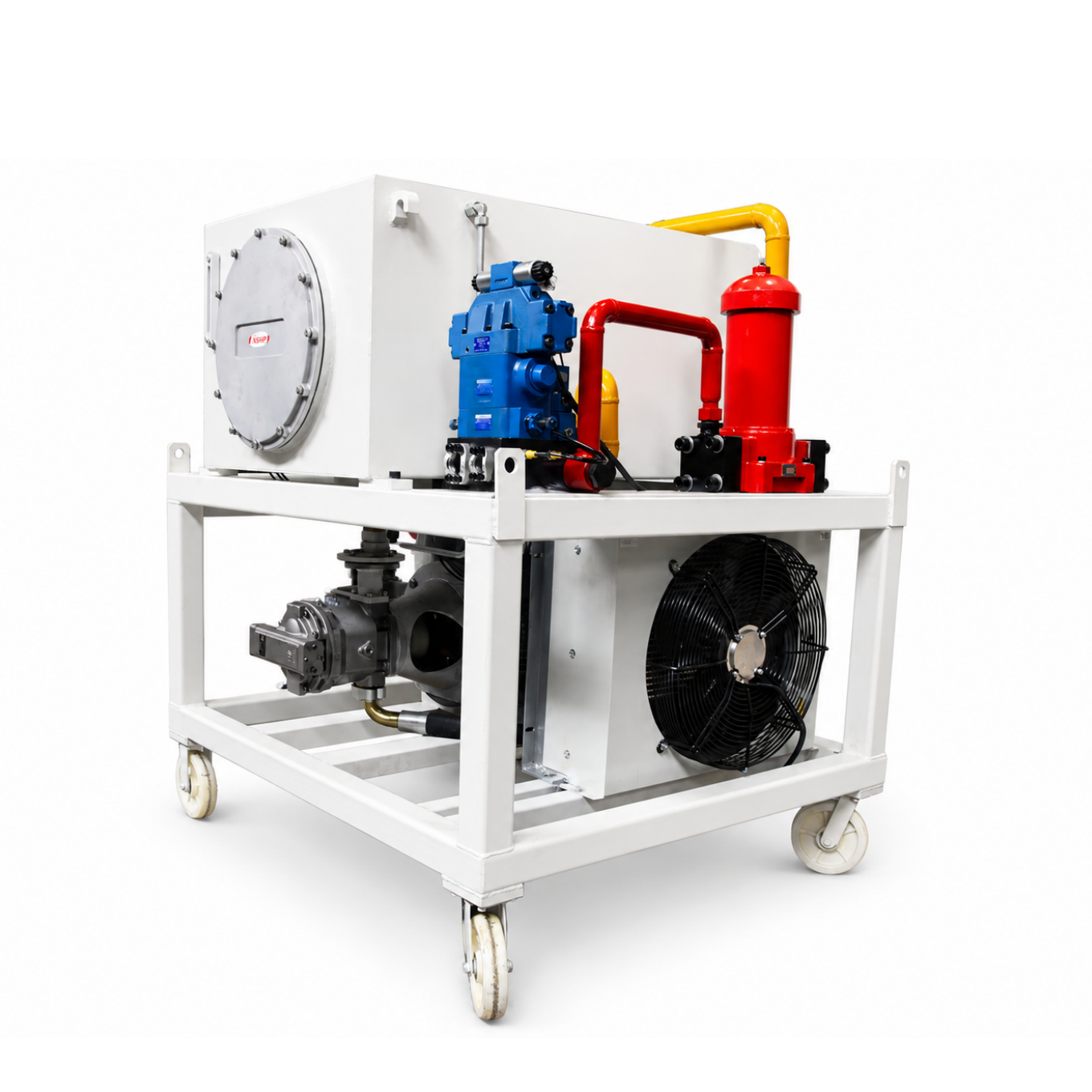

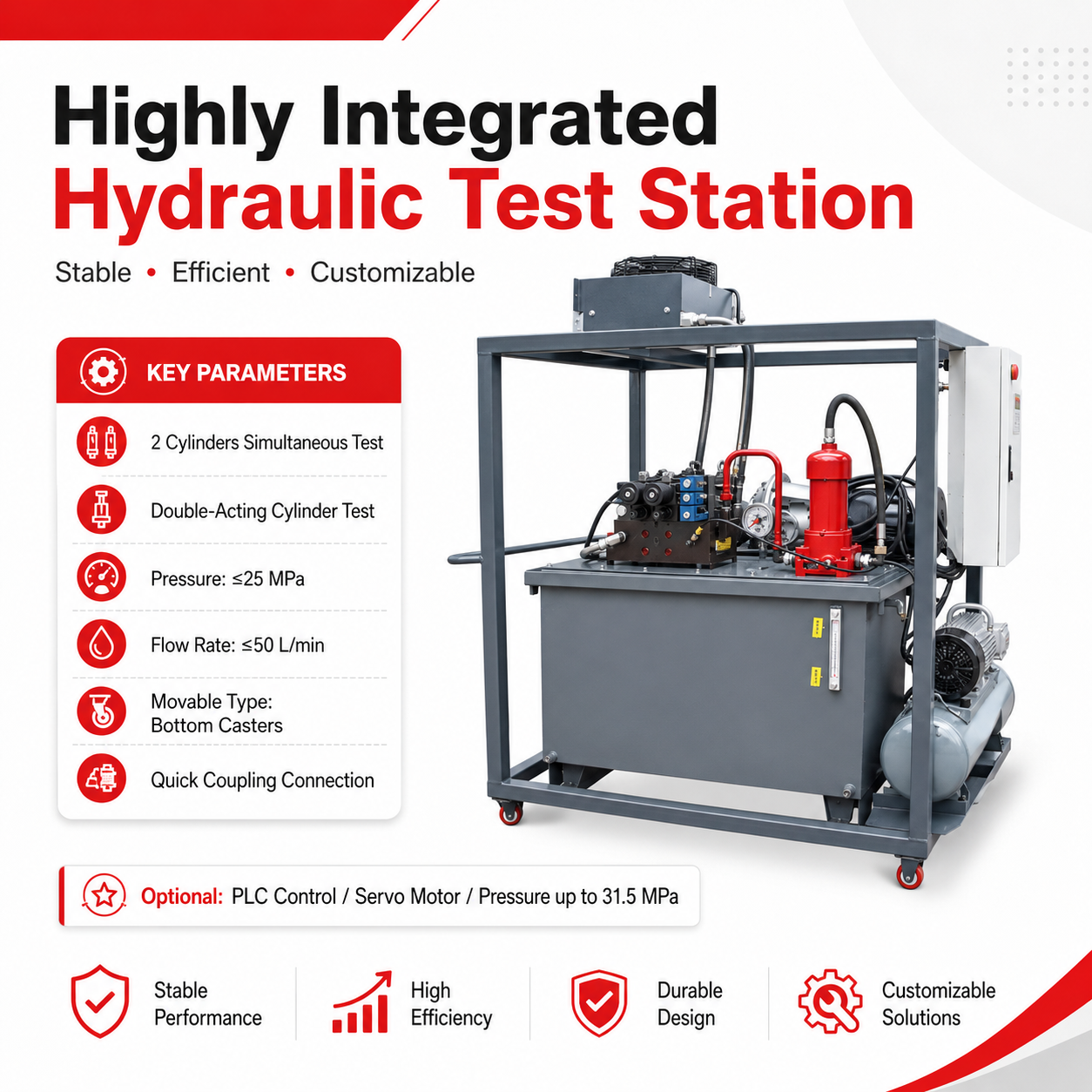

Highly Integrated Large Hydraulic Test Station	Larger cylinders and higher testing capacity	Higher pressure, larger flow rate, larger cylinder bore options

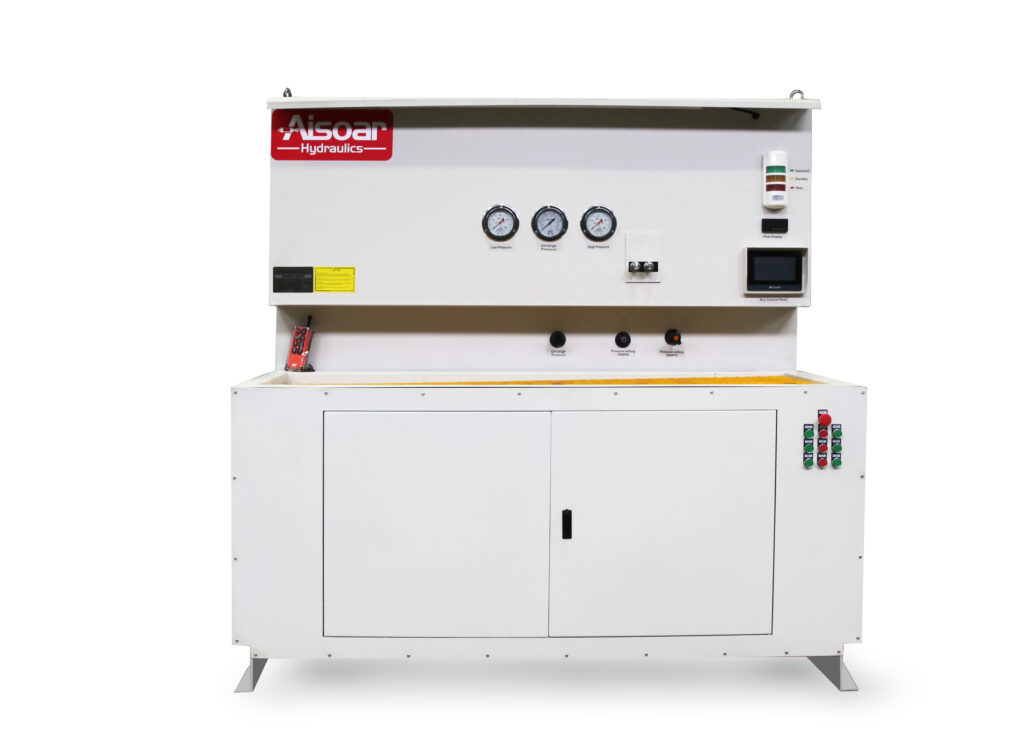

Integrated Hydraulic Cylinder Test Bench	Batch testing and higher automation	PLC control, data recording, report export, software monitoring options

Need a Standard Hydraulic Cylinder Testing Solution?

AiSoar Hydraulics can provide standard and customized hydraulic test stations according to your cylinder size, pressure, flow rate, control method, and testing process requirements.

Contact us to get a suitable hydraulic cylinder testing solution for your workshop or production line.

NO. AS-1001

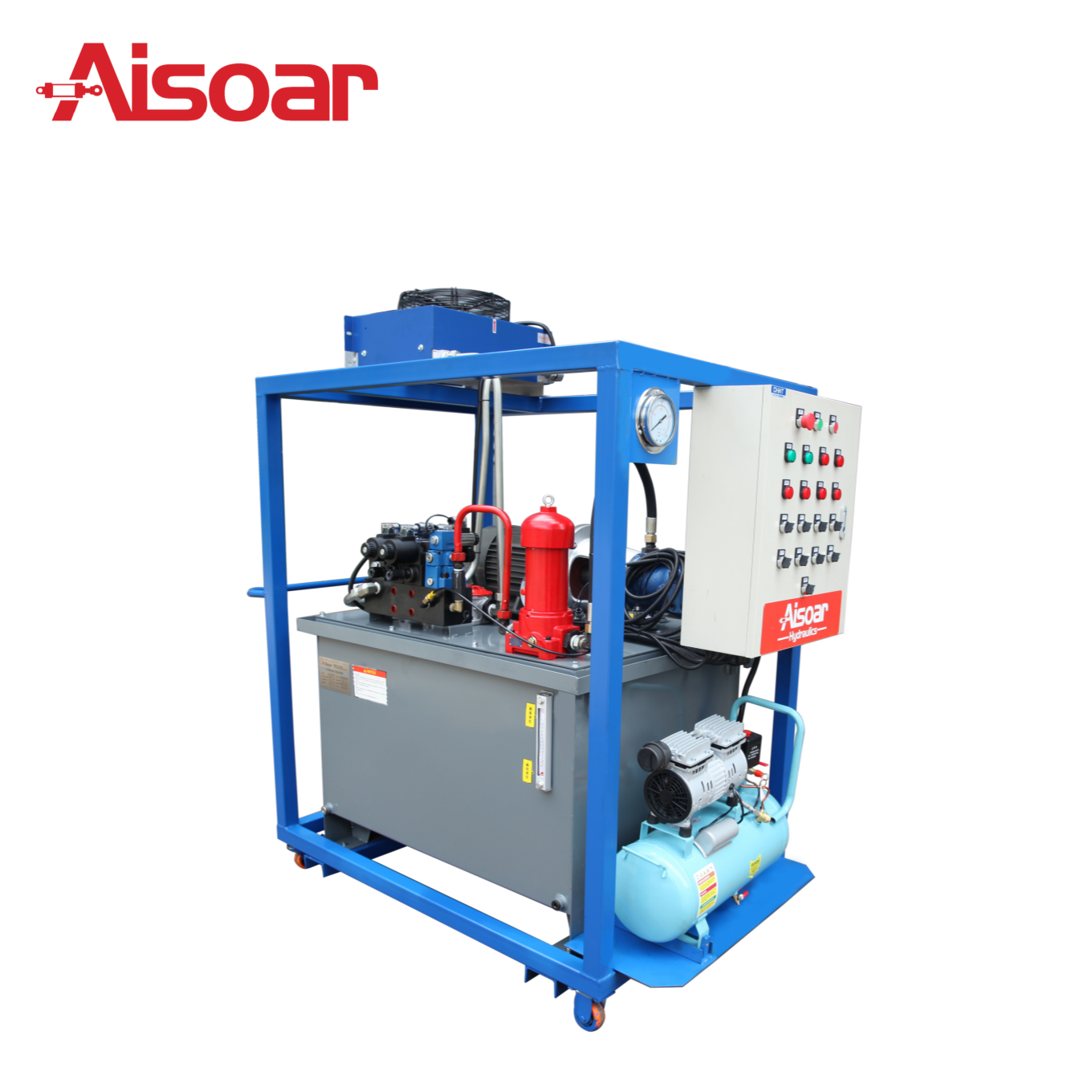

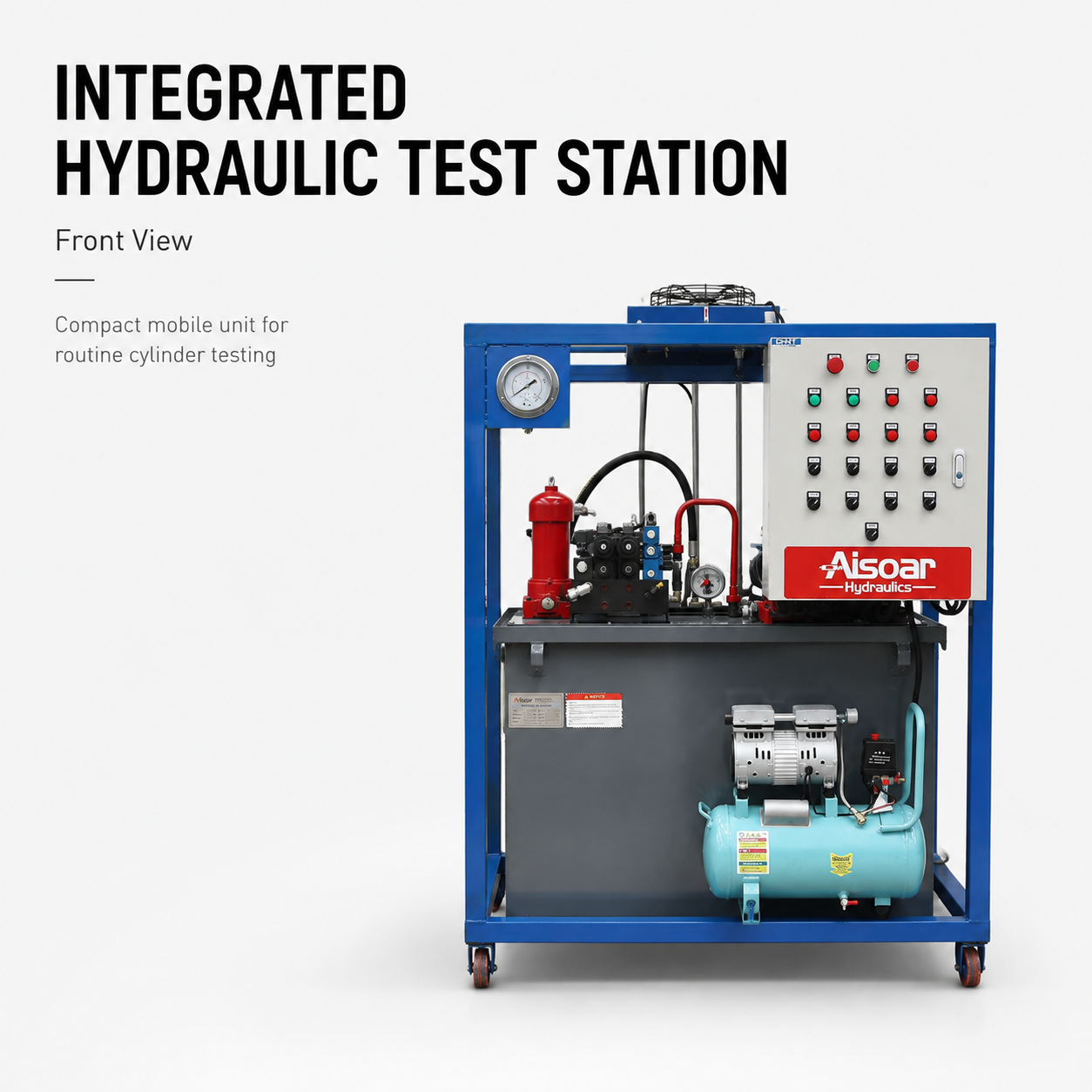

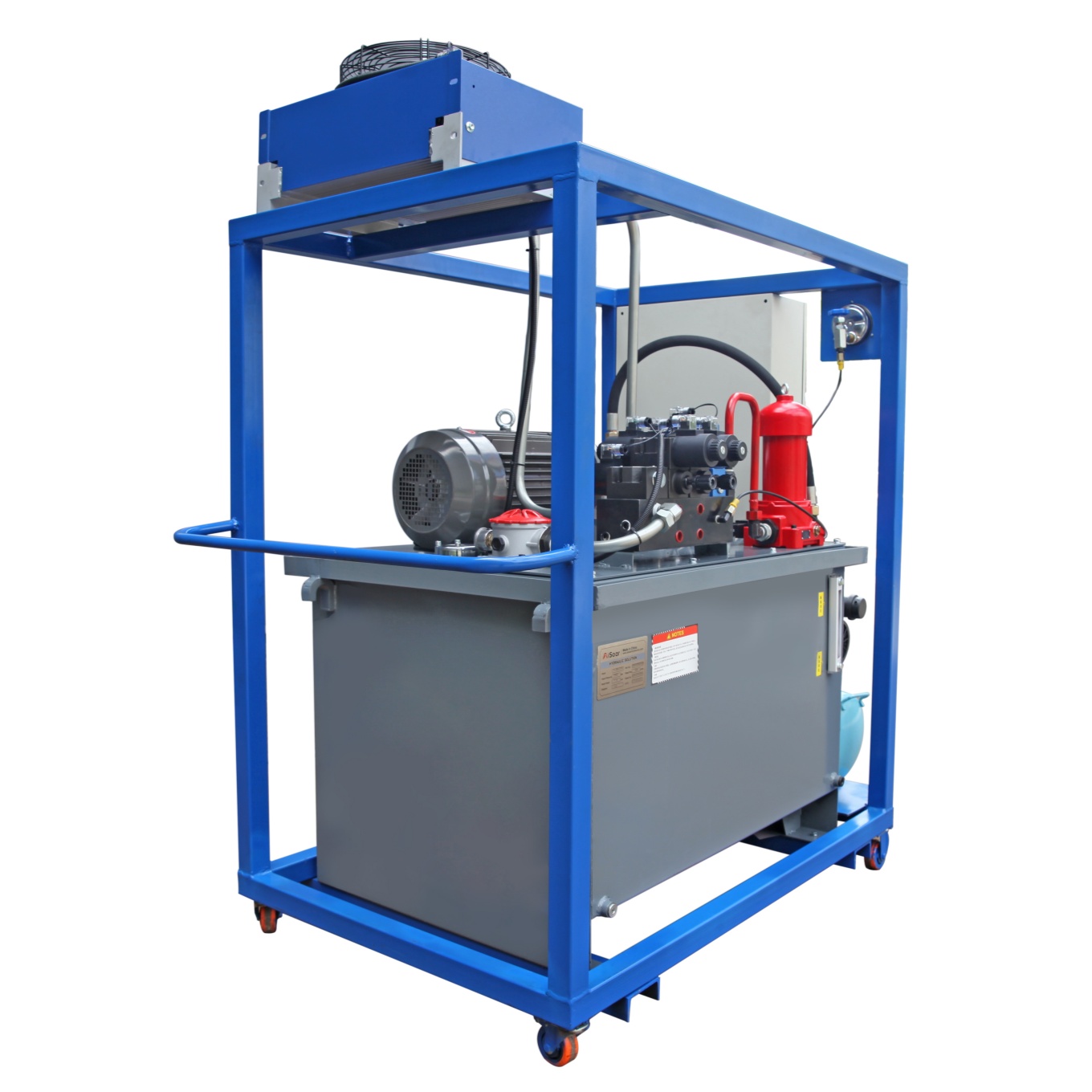

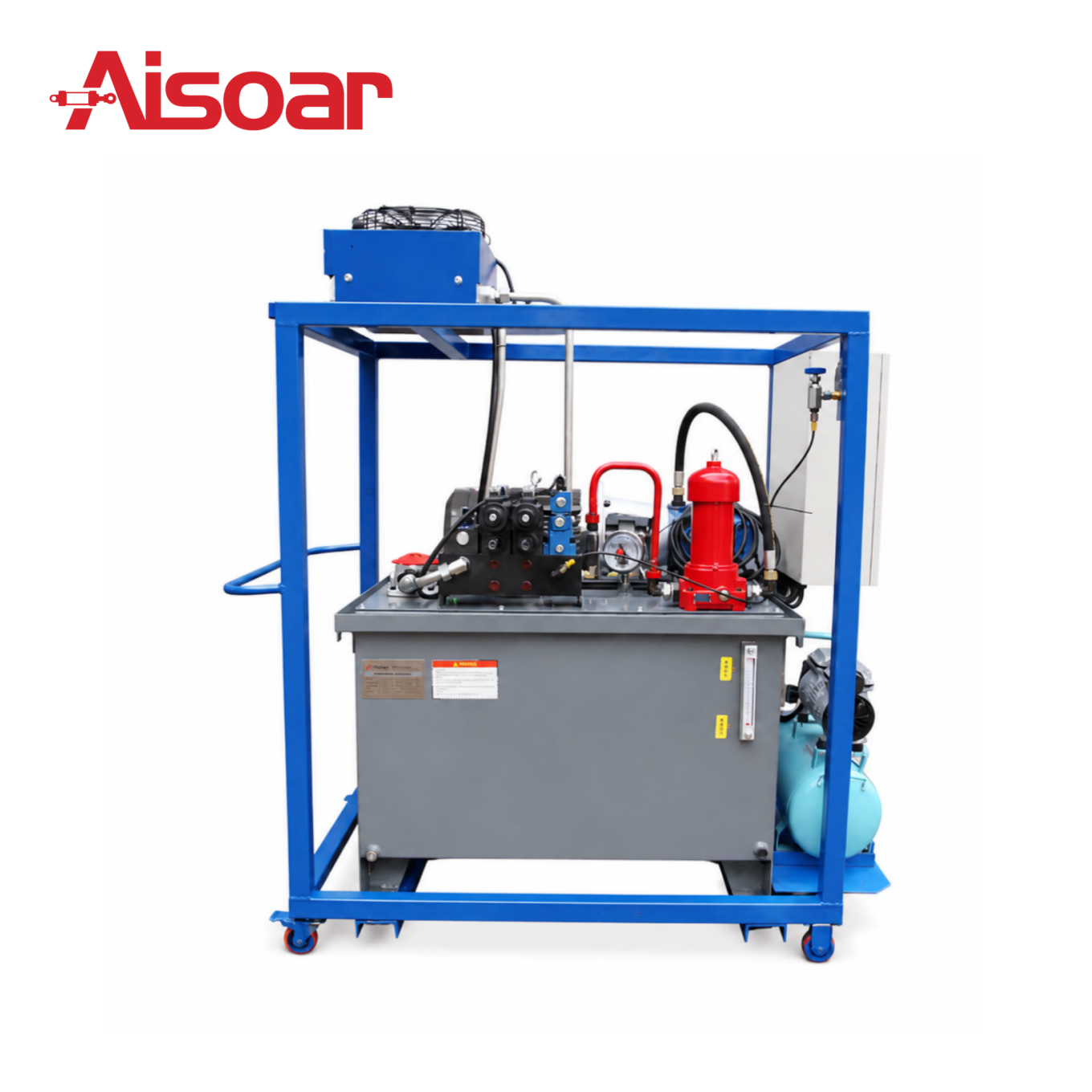

Standard Integrated Hydraulic Cylinder Test Station

The Standard Integrated Hydraulic Cylinder Test Station is a compact and movable hydraulic cylinder testing solution for routine inspection, repair testing, and quality control. It supports simultaneous testing of 2 cylinders, double-acting cylinder testing, pressure testing, leakage inspection, and cylinder movement verification. With integrated cooling, filtration, quick coupling connection, and push-button control, it provides a practical solution for standard hydraulic cylinder testing applications.
