Custom Hydraulic Test Station for Medium and Large Hydraulic Cylinder Testing
Features & Details
Product Description
The Highly Integrated Large Hydraulic Test Station is a professional hydraulic testing system for inspecting the performance and sealing reliability of hydraulic cylinders before delivery or after repair.
During the test process, the hydraulic cylinder can be connected to the test station through quick couplings. The operator can perform pressure testing, extension and retraction testing, leakage inspection, and pressure holding verification. This helps ensure that the hydraulic cylinder works safely and reliably before it is installed on equipment.
This model is especially suitable for customers who need a stronger testing platform than a simple hydraulic test station. It can be customized with higher pressure, larger flow rate, cooling systems, filtration circuits, PLC control, data recording, and test report export functions.
Product Specification
| Highly Integrated Large Hydraulic Test Station | ||
| Item | Standard Configuration | Optional Configuration |
| Product Name | Highly Integrated Large Test Station | Customized |
| Applicable Cylinder Type | Double-acting hydraulic cylinder | Customized |
| Simultaneous Test Quantity | 2 cylinders | 2–4 cylinders |
| Cylinder Bore | ＜100 mm | 100–200 mm / ＞200 mm |
| Standard Pressure | ≤25 MPa | ≤31.5 MPa / 50–70 MPa |
| Standard Flow Rate | ＜50 L/min | 50–200 L/min / ＞200 L/min |
| Pipeline Connection | Quick coupling connection | Customized connection |
| Cooling Method | Integrated air cooler | Independent air cooling / water cooling |
| Filtration Method | Integrated filter | Independent circulation filtration |
| Structure | Movable type with bottom casters | Customized structure |

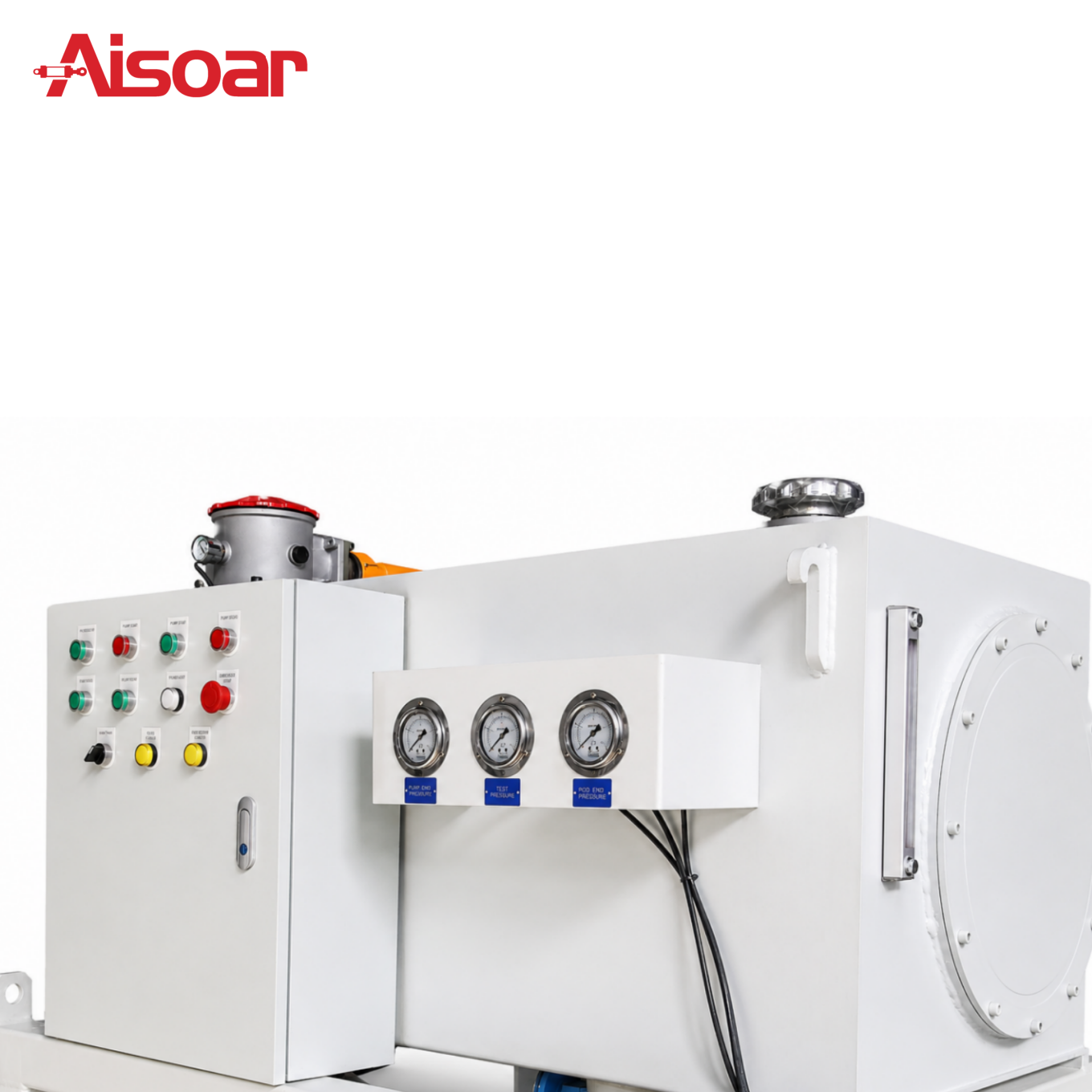

| Control System | Push-button control | PLC control, data recording, report export |
| Application | Hydraulic cylinder testing | Production line / repair workshop / QC department |
Solution
NO. AS-1001

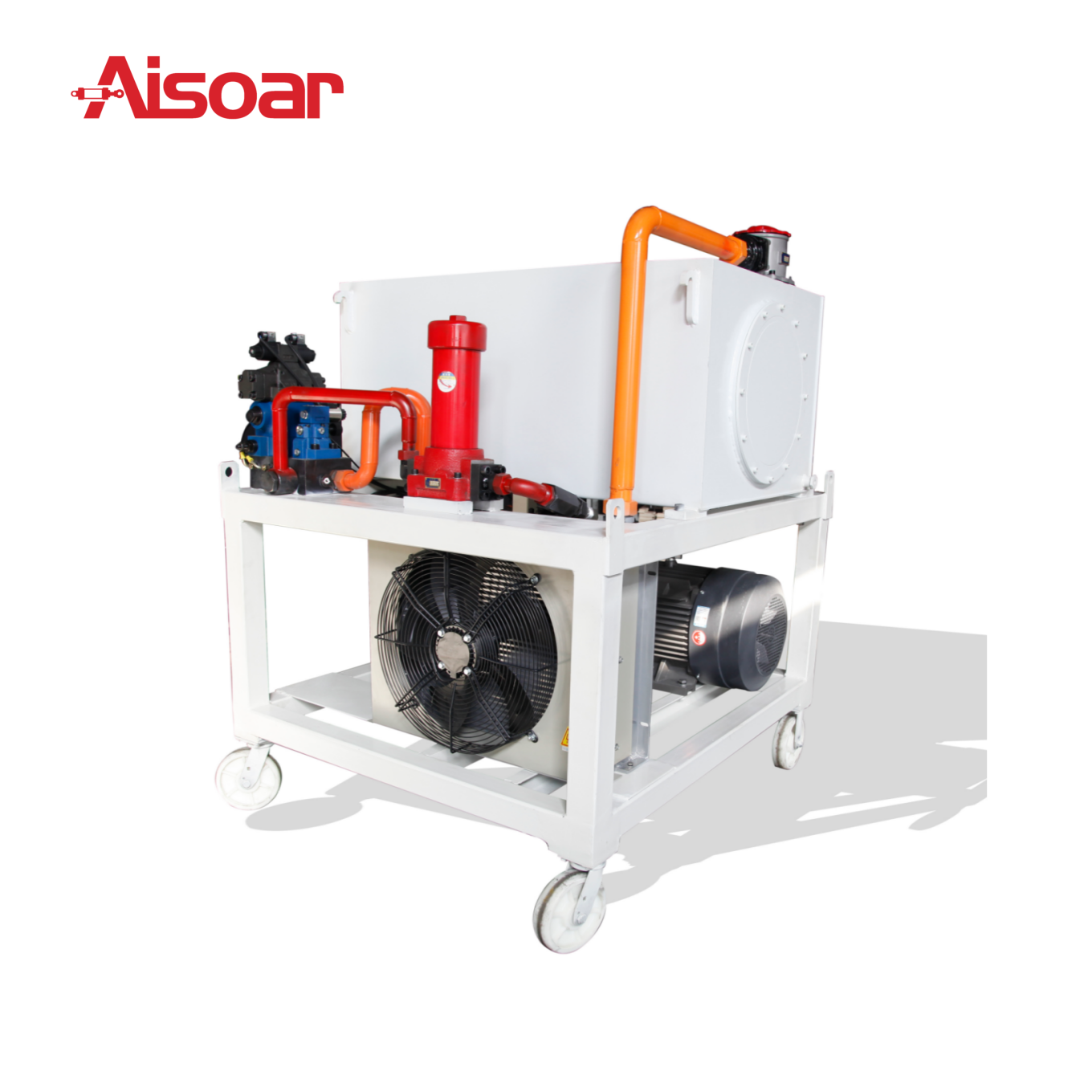

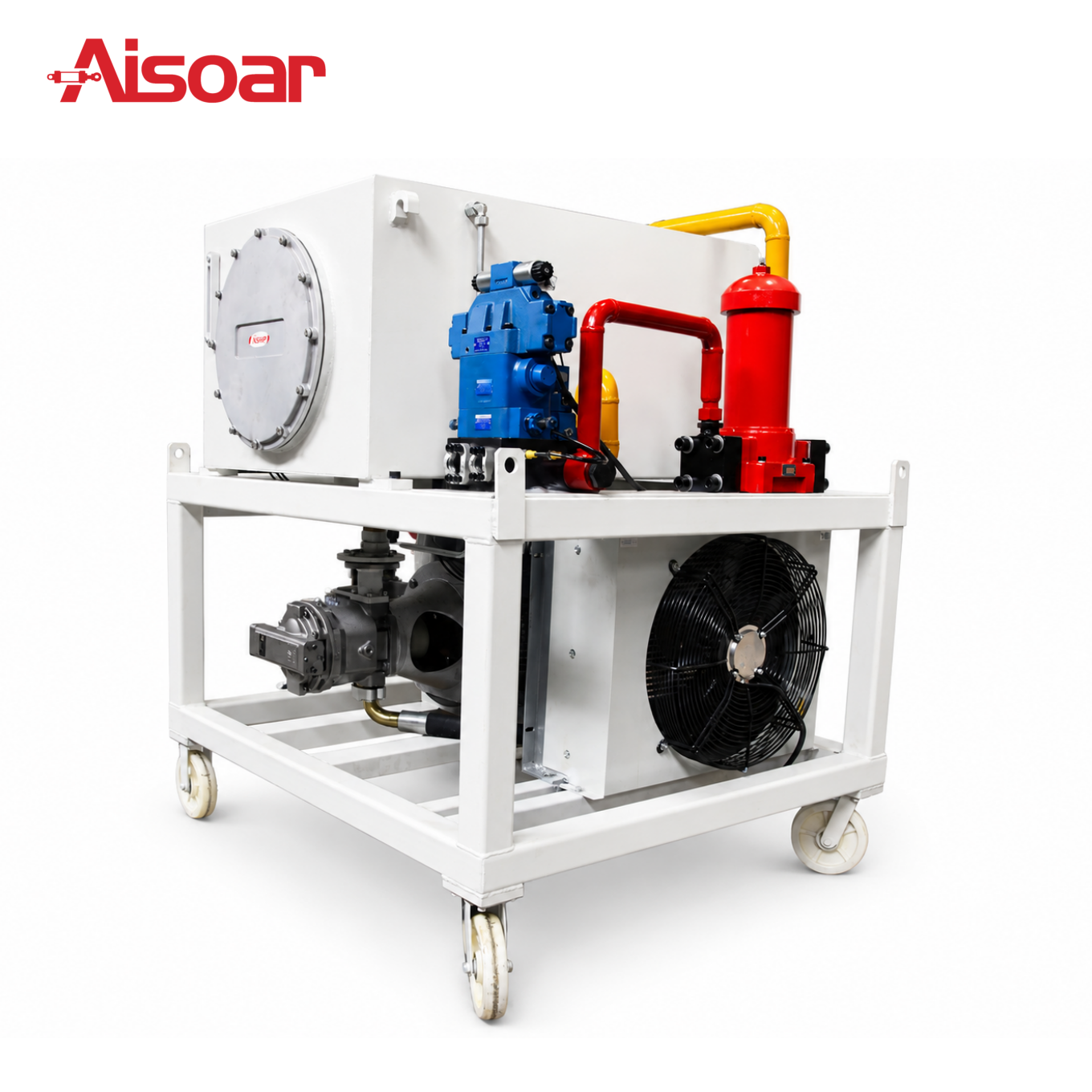

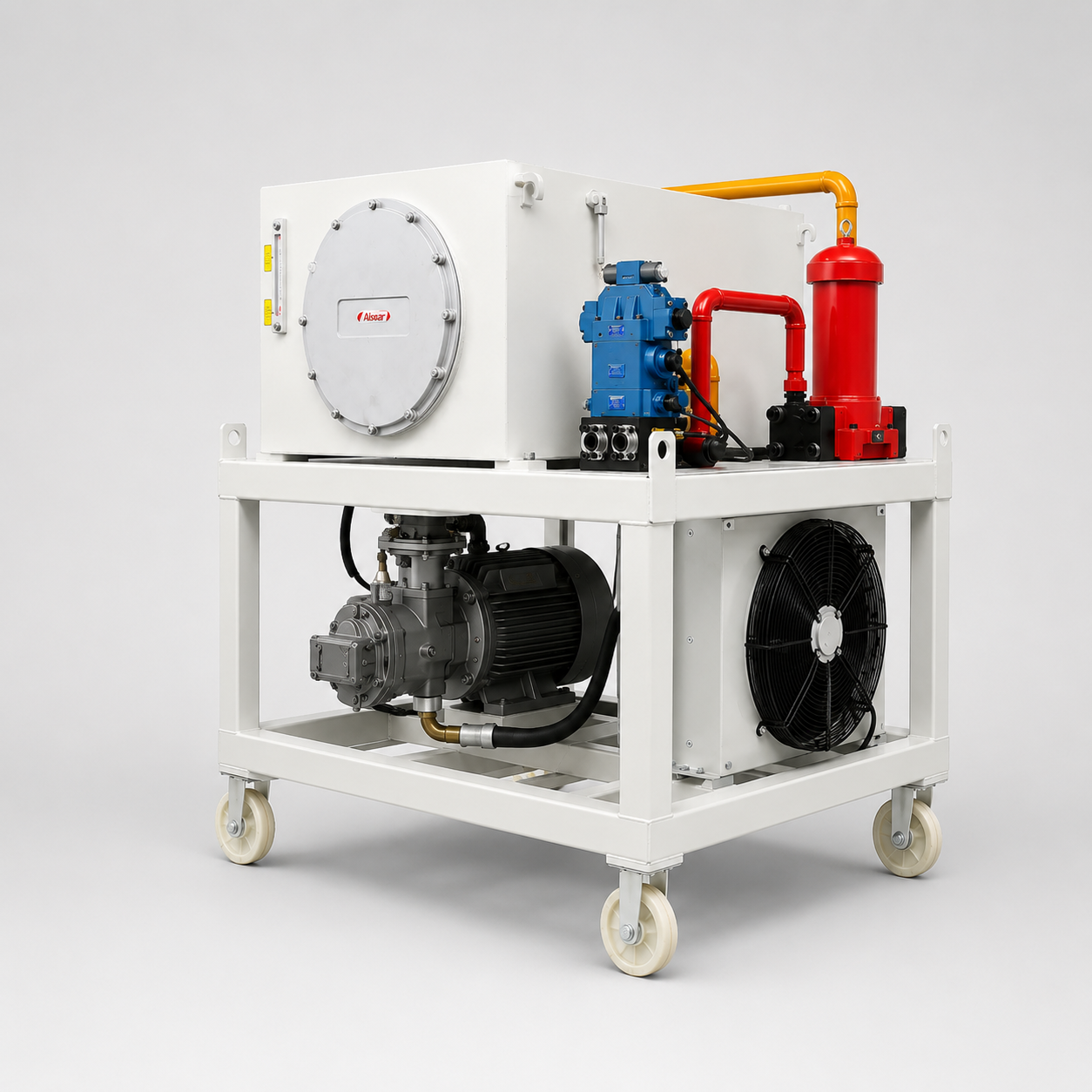

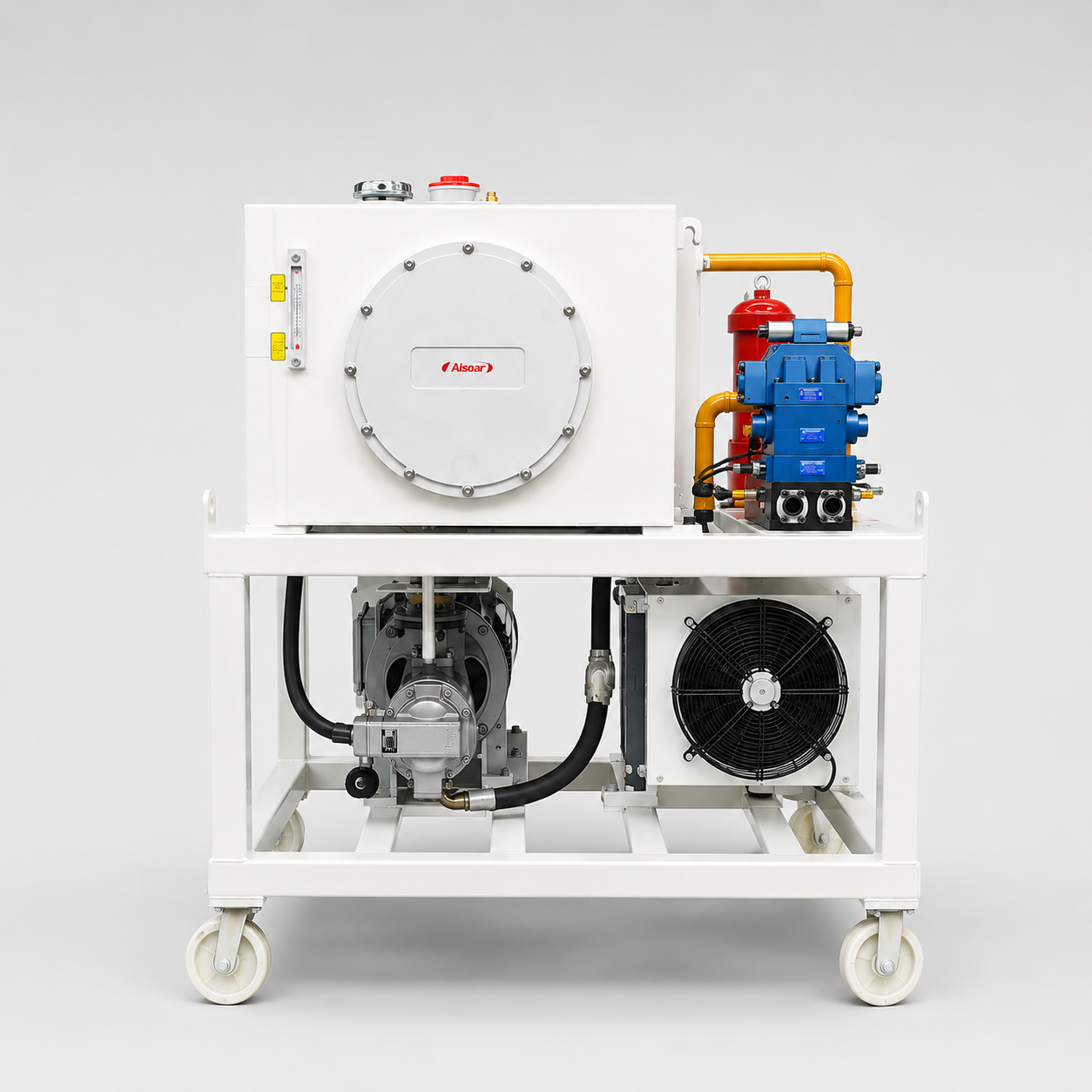

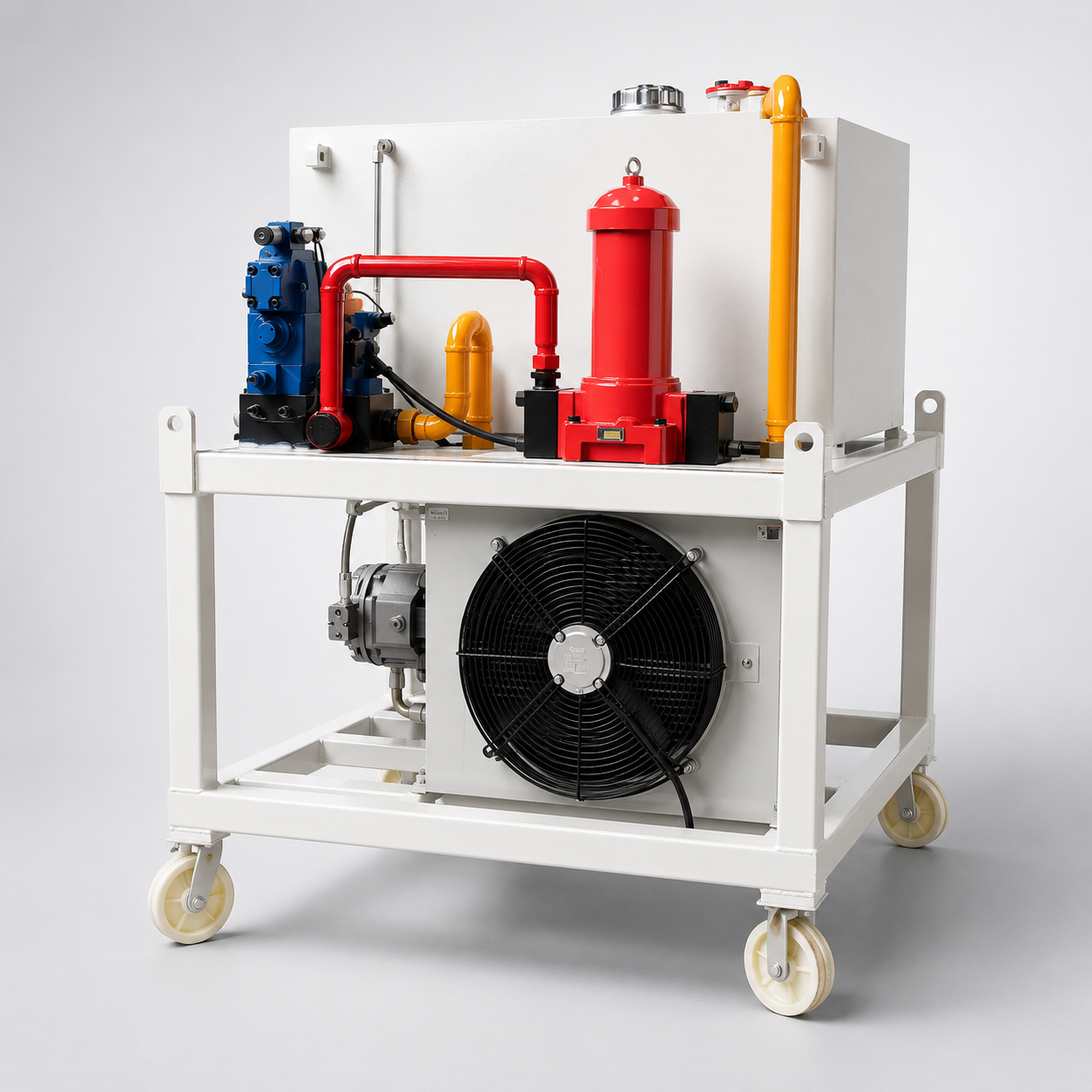

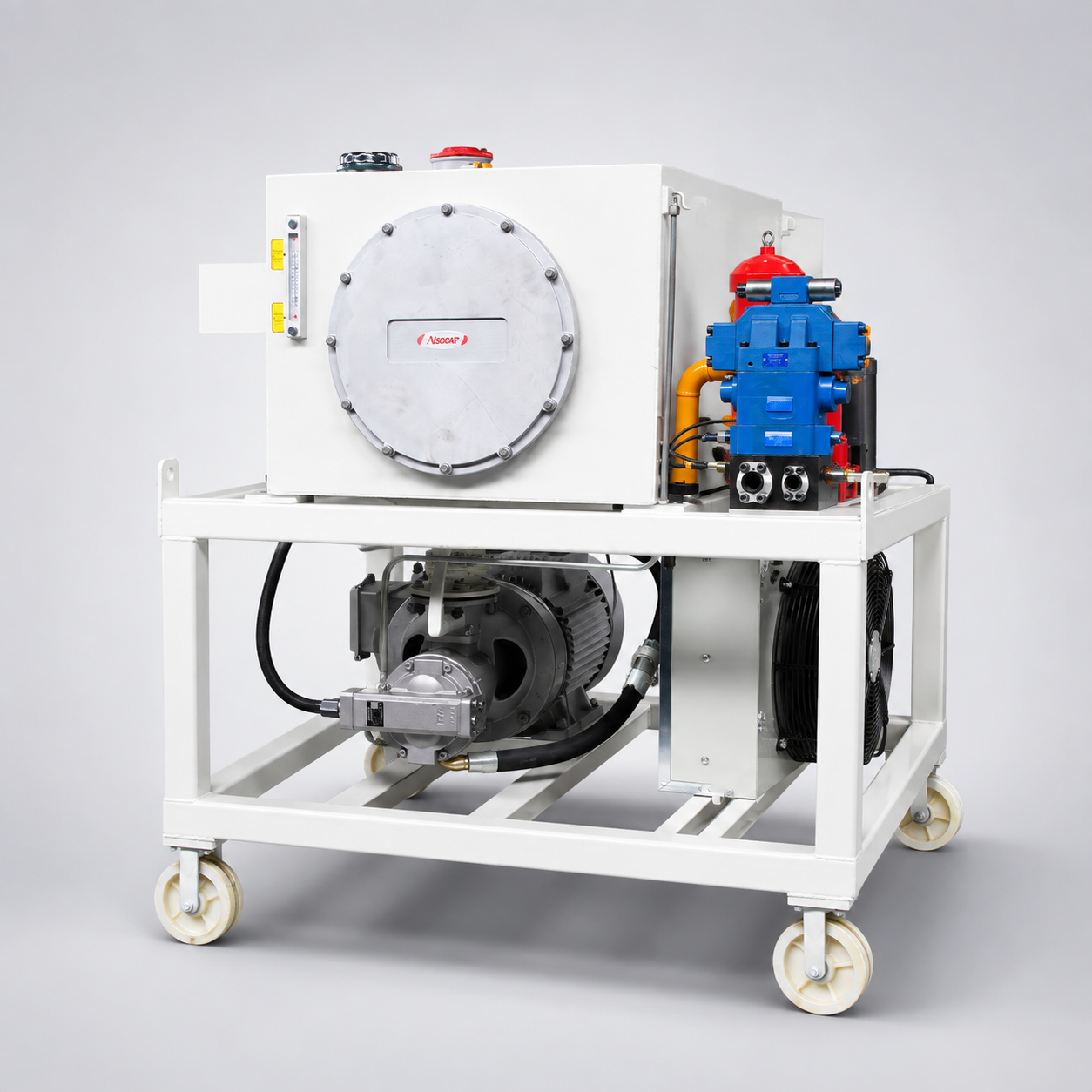

High Quality Highly Integrated Large Hydraulic Test Station
The Highly Integrated Large Hydraulic Test Station is the high-capacity model in AiSoar’s hydraulic test bench series. It is designed for hydraulic cylinder manufacturers, repair workshops, maintenance centers, and quality inspection departments that need to test medium and large hydraulic cylinders under higher pressure and larger flow conditions.
Compared with standard integrated hydraulic test benches, this model offers greater testing capacity, stronger system integration, and more flexible configuration options. It can be customized for larger cylinder bores, higher pressure ranges, larger flow rates, independent cooling circuits, filtration systems, and advanced control functions.
This test station is mainly suitable for double-acting hydraulic cylinder testing, including pressure testing, pressure holding tests, leakage inspection, extension and retraction movement tests, and customized test procedures according to different cylinder specifications.
