Project Info
- Project Name: Dumpster Tippe
- Client Industry: Food Industry
- Requirement: Lifting capacity of 400kg, with fast lifting speed
- Delivery Date: August 25, 2025
- Order Code: ASPI25080601
- Model: HPU-0.75T-2P-A220-3.2-7-HS/6-YC-G1/4
- Operating Pressure: 7 MPa
- Pump Flow Rate: 3.2 cc/rev
- Motor Power: 0.75 kW
- Tank Capacity: 6 L
Project Background

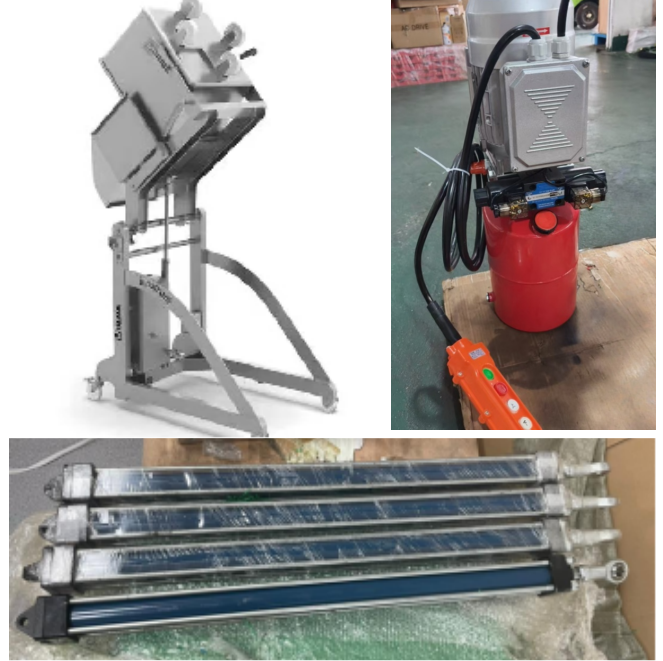

In today’s food processing sector, sustainable and efficient waste handling is essential for both productivity and regulatory compliance. The client required an advanced hydraulic solution for their garbage bin tipper, demanding a 400 kg lifting capacity with fast, precise motion control.
Specific Requirements
- Safe and reliable lifting of 400 kg bins at high speed.
- Cylinder stroke of 600 mm for flexible tipping performance.
- Operation within strict hygiene and environmental standards.
Project Solution
Our Provided Solution

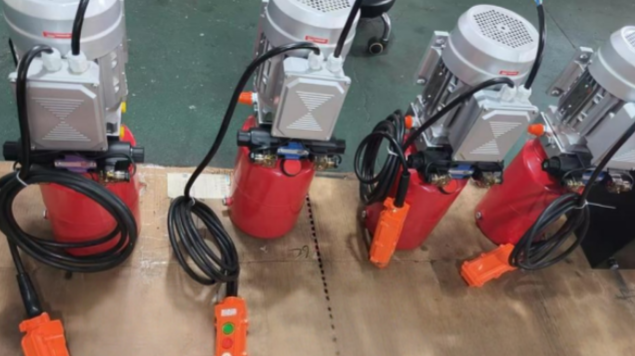

Responding to the needs of modern food operations, our engineering team developed a compact, high-efficiency Hydraulic Power Unit (HPU) integrating advanced technical features and eco-friendly design principles.
Key Technical Highlights
- Smart Energy-Saving Drive System
The HPU is equipped with a premium efficiency motor and precision displacement pump, engineered to minimize power consumption per lift cycle. The electronic control logic further optimizes system utilization, reducing idle consumption and delivering significant energy savings over conventional units.
- Adaptive Hydraulic Circuit Design
Our engineers utilized simulation-driven design tools to develop a circuit that self-adjusts pressure delivery for varying bin loads, maintaining lifting speed consistency while safeguarding equipment against overload—extending system life and operational reliability.
- Integrated Leak-Prevention Technology
High-grade seals and anti-leak fittings ensure a clean operating environment, drastically reducing the risk of hydraulic fluid loss. This innovation supports stringent food industry hygiene requirements while lowering maintenance needs.
- Low Oil Volume, High Efficiency
The compact 6L hydraulic reservoir is matched expertly to the working cycle, minimizing total oil usage without sacrificing performance. Reduced oil volume means fewer resources consumed and lower environmental footprint.
- Eco-Friendly Hydraulic Fluid Compatibility
The system is compatible with biodegradable hydraulic oils, offering clients an option to further reduce environmental impact and meet international green standards.
- Noise Reduction and Vibration Control
Special noise-damping mounts and tuned hydraulic components decrease acoustic emissions and vibration, creating a safer, quieter workspace for operators.
- User-Centric Control and Safety
The wired remote control integrates emergency stop, single-touch actuation, and overload protection logic, ensuring safer operator experience and contributing to accident reduction.
Project Result
The delivered solution outperformed client expectations. On-site testing confirmed swift, stable, and quiet tipper operation with dramatic reductions in energy use and hydraulic oil consumption. The client praised the system for its reliability, ease of use, and environmental sensitivity, helping their facility achieve both performance and sustainability targets.
