HYDRAULIC TESTER MANUFACTURER
Features & Details
Advanced Hydraulic Tester Features for Superior Performance
① Test two cylinders at the same time
② High pressure hoses with quick disconnects
③ Hose storage rack
④ Five Pressure gauges visual
⑤ Quick disconnect adaptors
⑥ Low friction caster wheels
⑦ Electrical control /Manual control
⑧ Air cooler
⑨ Temperature Sensor，Level relay
⑩ Hand pump circuit（Power off Manual operation）
OEM Hydraulic Cylinder Tester: Precision Testing Equipment for Manufacturers
As a manufacturer in the hydraulic industry, ensuring the performance and reliability of hydraulic cylinders is crucial. The OEM Hydraulic Cylinder Tester offers precision testing equipment specifically designed for manufacturers who demand accurate and consistent results. This advanced tester enables comprehensive diagnostics, including pressure, flow, and leakage analysis, helping manufacturers identify potential issues before products reach the market.
With user-friendly controls, robust construction, and compatibility with various hydraulic systems, our OEM solutions can be tailored to meet your specific testing requirements. Invest in a precision hydraulic cylinder tester to improve quality control, reduce downtime, and enhance your reputation as a reliable supplier in the industry.
Request more information about our OEM testing equipment and discover how it can streamline your production process today.
Product Specification
| Max.Pressure | 250Bar, 315Bar is optional |
| Power Required | 50/60HZ/3Ph,as your required |
| Horse Power | 15 HP / 11kW |
| Reservoir Capacity | 350L |
| Hydraulic Pump Capacity | 36LPM at 50HZ |
| Optional Accessories | Pressure Sensor Flowmeter |
Solution
NO. AS-1001

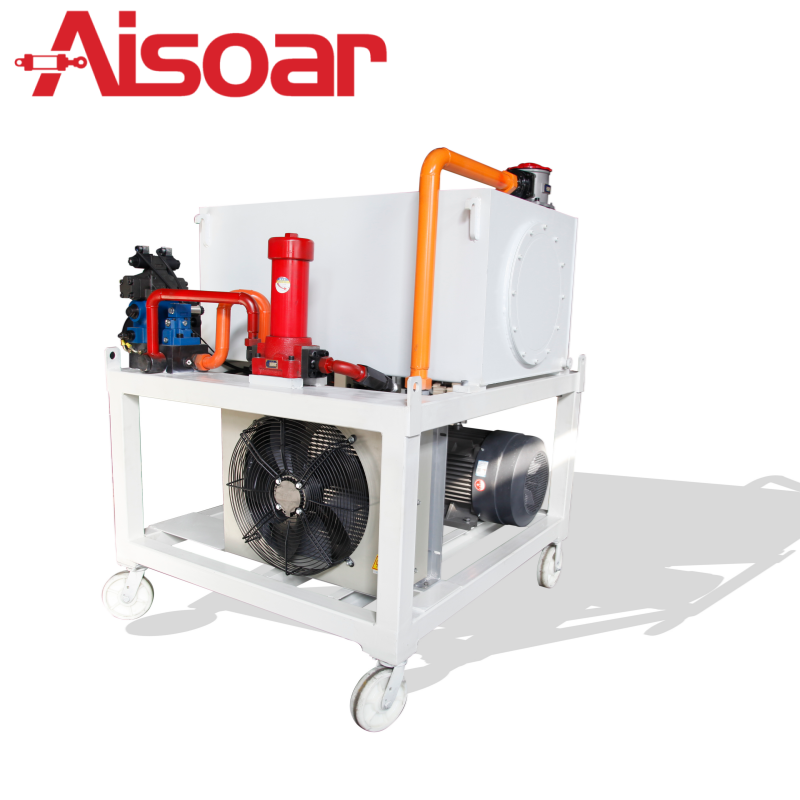

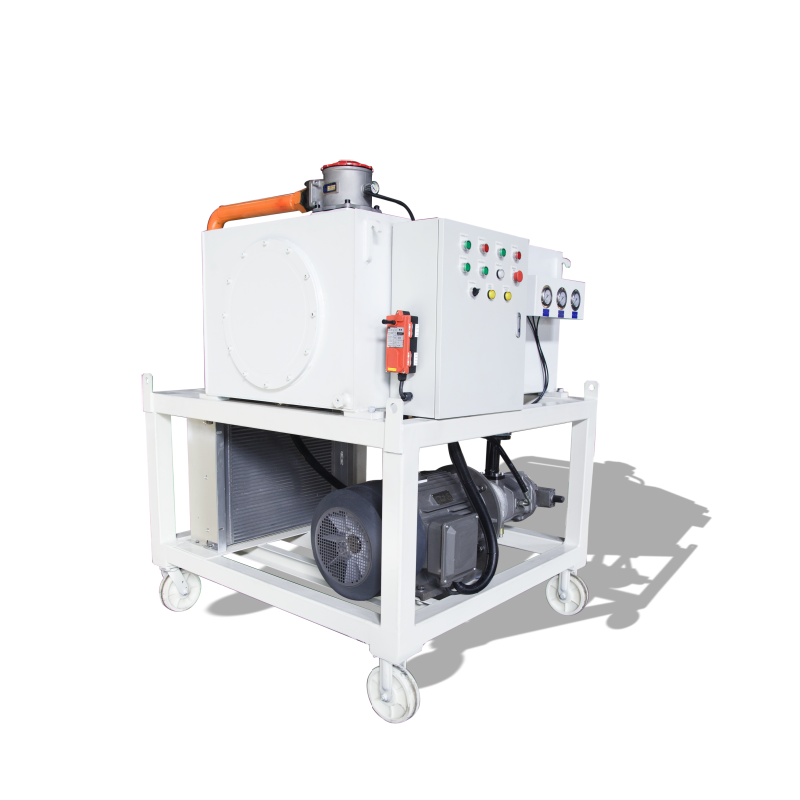

High Quality Hydraulic Cylinder Tester
This hydraulic tester is able to test one cylinder, the test pressure is manually adjusted through the relief valve. Directional valve controls cylinder extension and retraction, and it is also equipped with a throttle valve and a pilot-operated check valve. The throttle valve is used to adjust the movement speed of the cylinder, and the pilot-operated check valve can make the cylinder stay in any position. The hydraulic station is equipped with three pressure gauges, which can display test the system pressure, the pressure of the rod end and the pressure of the cap end.
This hydraulic tester is equipped with an electrical control box as long with a wireless remote, which controls motor start-stop and emergency stop, the loading and unloading of the pump, and the extend and retreat of the cylinder.
