Choosing the wrong mini hydraulic power unit or hydraulic power pack can cause weak lifting, slow movement, overheating, and equipment downtime. Understanding its applications helps you select the right system from the beginning.
A mini hydraulic power unit or hydraulic power pack is used to provide pressurized hydraulic oil for equipment that needs lifting, pushing, pulling, pressing, tilting, clamping, or controlled movement. It is widely used in dock levelers, lift tables, dump trailers, car lifts, stackers, presses, tail lifts, agricultural machinery, and many industrial machines.
Different equipment requires different pressure, flow, motor power, tank size, and valve functions. Below are the most common mini hydraulic power unit and hydraulic power pack applications.
In this article, we mainly focus on compact and mini hydraulic power units used in mobile equipment, lifting platforms, dock levelers, dump trailers, and material handling machinery.
What Is a Mini Hydraulic Power Unit?
A mini hydraulic power unit, also called a hydraulic power pack, is the compact power source of a hydraulic system. It usually includes an electric motor, hydraulic pump, oil tank, valves, filter, pressure gauge, and control components.
Its main job is to convert electrical or engine power into hydraulic energy. The pump pushes hydraulic oil into the circuit, and the pressurized oil drives hydraulic cylinders or hydraulic motors.
In many machines, the mini hydraulic power unit does not directly contact the load. Instead, it supplies stable oil pressure and flow to the actuator. For example, in a dock leveler, the power pack drives the cylinder to lift the platform and extend the lip. In a dump trailer, it powers the cylinder to raise the trailer bed.
Because different machines have different working conditions, mini hydraulic power units are usually customized according to pressure, flow rate, voltage, tank capacity, valve function, and installation space.
Why Are Mini Hydraulic Power Units Used in Industrial Equipment?
Mini hydraulic power units and hydraulic power packs are widely used because they can generate high force in a compact structure. Compared with purely mechanical or electric systems, hydraulic systems are better suited for heavy loads, frequent operation, and harsh working environments.
A small mini hydraulic power unit can drive a large cylinder and lift heavy equipment smoothly. This makes it useful for machines where space is limited but strong lifting force is required.
Another advantage is controllability. By using different valves, a hydraulic power pack can control lifting, lowering, holding, tilting, clamping, and emergency release. This is especially important for equipment that requires safe and stable movement.
Mini hydraulic power units are also flexible. They can be designed with AC motors, DC motors, single-acting circuits, double-acting circuits, manual valves, solenoid valves, pressure relief valves, and remote control systems. This allows manufacturers to match the power pack to different equipment designs.

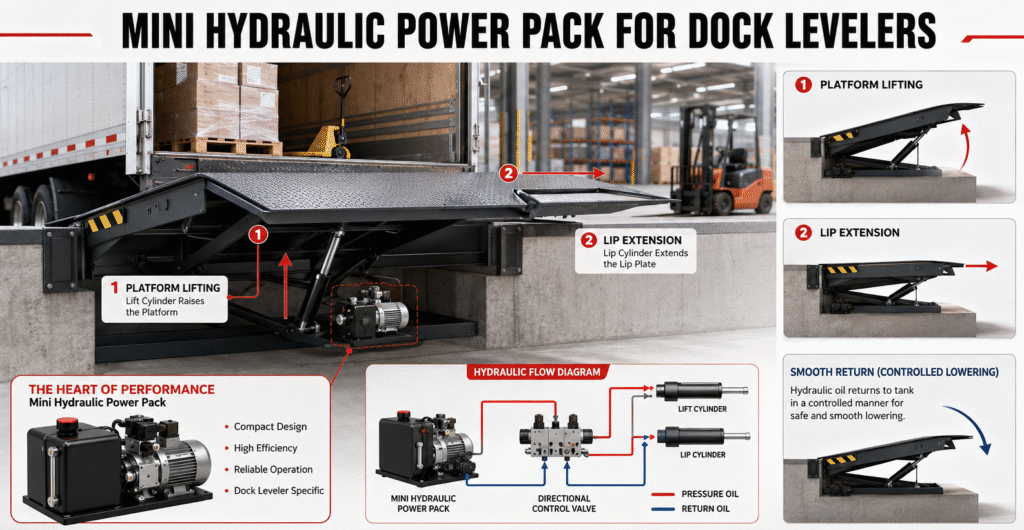

Mini Hydraulic Power Pack for Dock Levelers
Dock levelers are one of the most common applications for compact mini hydraulic power units. In warehouses and logistics centers, dock levelers connect the loading dock with the truck bed, allowing forklifts and pallet trucks to move goods safely.
A dock leveler hydraulic power pack usually controls two movements: platform lifting and lip extension. When the motor starts, the pump sends oil to the lifting cylinder, raising the platform. After that, the lip cylinder extends the lip plate. When unloading is complete, the system releases oil back to the tank, allowing the platform to return smoothly.
For dock leveler applications, the mini hydraulic power unit must provide stable lifting force, safe lowering speed, and reliable holding performance. Common requirements include compact size, low noise, overload protection, and easy maintenance.
Because dock levelers are used frequently, the hydraulic power pack must also be durable enough for repeated daily operation.

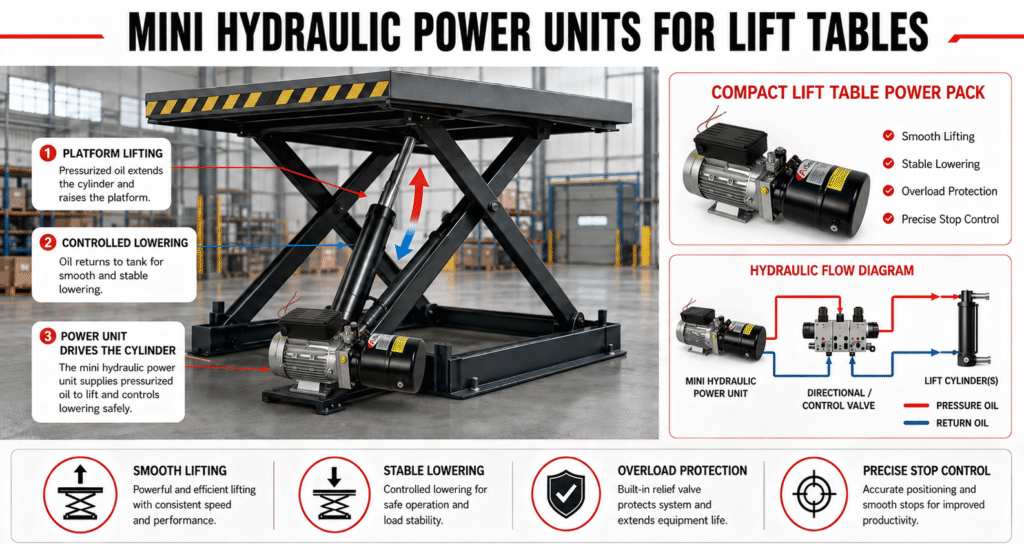

Mini Hydraulic Power Units for Lift Tables
Lift tables and scissor lifts use mini hydraulic power units or hydraulic power packs to raise and lower platforms. These machines are widely used in factories, warehouses, assembly lines, maintenance areas, and material handling systems.
In this application, the mini hydraulic power unit drives one or more cylinders installed under the scissor structure. When pressurized oil enters the cylinder, the cylinder extends and pushes the scissor arms upward. When the valve releases pressure, the platform lowers in a controlled way.
The key requirements for this type of hydraulic power pack include smooth lifting, stable lowering, overload protection, and precise stop control. For safety reasons, many systems include check valves, flow control valves, emergency lowering valves, and pressure relief valves.
Lift table power packs can be designed with AC motors for indoor industrial equipment or DC motors for mobile lifting platforms.

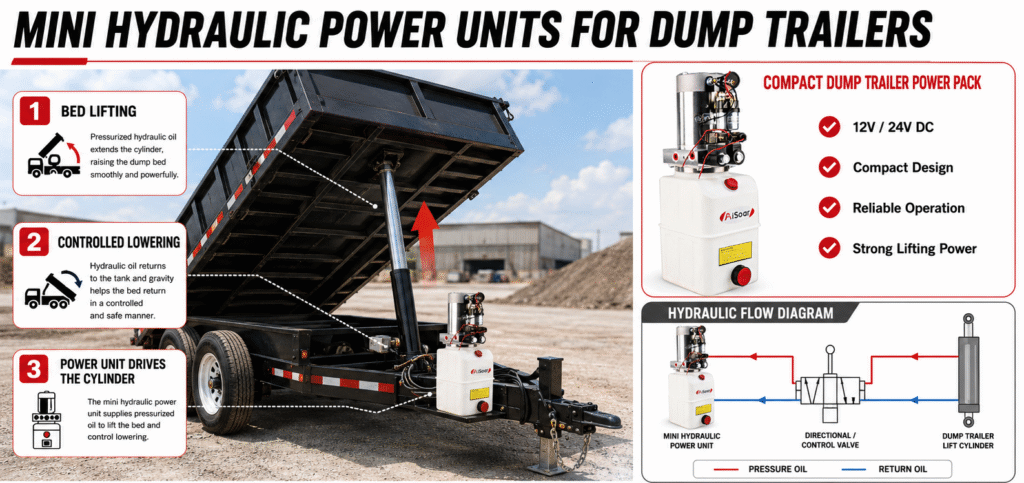

Mini Hydraulic Power Units for Dump Trailers
Dump trailers require mini hydraulic power units or hydraulic power packs to lift and lower the trailer bed. This application is common in construction, agriculture, landscaping, waste transport, and material delivery.
A dump trailer hydraulic power pack usually uses a DC motor, commonly 12V or 24V, because the trailer is powered by a battery system. The power pack drives a hydraulic cylinder, often a telescopic cylinder or single-acting cylinder, to lift the dump bed.
When the operator presses the control button, the motor starts and the pump sends oil to the cylinder. The cylinder extends and raises the bed. During lowering, the valve releases hydraulic oil back to the tank, and gravity helps the trailer bed return.
For dump trailer applications, the mini hydraulic power unit must be strong, compact, and reliable. Important selection factors include motor voltage, oil tank size, working pressure, flow rate, and control method.

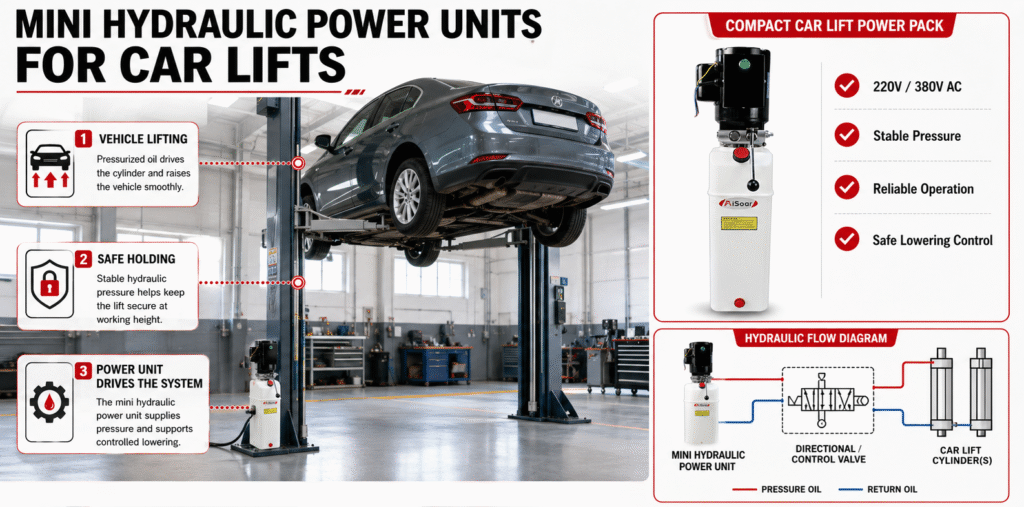

Mini Hydraulic Power Units for Car Lifts
Car lifts use mini hydraulic power units or hydraulic power packs to raise vehicles for repair, inspection, and maintenance. They are commonly used in auto repair shops, parking systems, and vehicle service centers.
A car lift hydraulic power pack usually powers one or more hydraulic cylinders. The system must lift the vehicle smoothly and hold it safely at a fixed height. Because vehicle lifting involves high safety requirements, pressure stability and reliable locking performance are very important.
Many car lift power packs use AC motors, such as 220V or 380V, depending on the local power supply and lifting capacity. The system may also include manual lowering valves, pressure relief valves, and flow control valves.
For this application, the mini hydraulic power unit should provide enough pressure and flow to lift the vehicle efficiently while maintaining safe and stable operation.
Mini Hydraulic Power Units for Tail Lifts
Tail lifts, also known as truck tailgates or liftgates, use mini hydraulic power units or hydraulic power packs to lift and lower goods at the rear of trucks. They are widely used in logistics, delivery vehicles, refrigerated trucks, and commercial transport.
The hydraulic power pack drives cylinders that control platform lifting, lowering, tilting, and folding. Since tail lifts are installed on vehicles, DC mini hydraulic power units are commonly used.
A tail lift power pack must be compact, vibration-resistant, and reliable in outdoor environments. It should also support safe lowering and emergency operation in case of power failure.
In many modern tail lift systems, electric control is combined with hydraulic lifting. This allows the equipment to achieve both convenient operation and strong lifting force.
Mini Hydraulic Power Units for Material Handling Equipment
Mini hydraulic power units and hydraulic power packs are widely used in material handling machines such as stackers, pallet trucks, loading platforms, lifting carts, and warehouse equipment.
These machines often need compact power sources because installation space is limited. Mini hydraulic power units are especially suitable for this application. They can provide enough pressure to lift loads while keeping the equipment structure compact.
For stackers and pallet trucks, the hydraulic power pack usually controls the lifting function. In some machines, it may also control tilting, clamping, or positioning.
The main requirements include compact design, stable pressure, easy battery connection, low noise, and reliable performance during frequent start-stop operation.
Mini Hydraulic Power Units for Industrial Presses and Clamping Machines
Industrial presses, clamping machines, bending machines, and forming equipment often use mini hydraulic power units or hydraulic power packs to generate strong pressing or holding force.
Unlike lifting applications, these machines usually require stable pressure and precise control. The mini hydraulic power unit may need to maintain pressure for a long time or provide repeated pressing cycles.
Typical applications include metal forming, plastic molding, assembly pressing, testing equipment, and fixture clamping. In these cases, the hydraulic power pack must be designed according to the required pressure, flow, cycle time, and working frequency.
For heavy-duty industrial applications, larger hydraulic systems may include cooling systems, pressure sensors, accumulators, proportional valves, and advanced control systems.
How to Choose a Mini Hydraulic Power Unit for Your Application
To choose the right mini hydraulic power unit or hydraulic power pack, the first step is to understand the machine’s working requirements. Different applications need different hydraulic solutions.
Important factors include lifting capacity, cylinder size, working pressure, oil flow, motor voltage, reservoir capacity, installation space, control method, and duty cycle.
Power Source
The motor type should match the equipment and working environment.
Common options include:
- 12V / 24V DC power packs for dump trailers, tail lifts, mobile lift platforms, and battery-powered equipment
- AC power units for factory equipment, lift tables, car lifts, and stationary machines
Choosing the right voltage helps ensure stable operation and easier installation.
Hydraulic Circuit Type
Different machines need different hydraulic circuits.
Common choices include:
- Single-acting power pack for simple lifting and gravity lowering
- Double-acting power unit for powered extension and powered retraction
If the equipment only needs to lift and lower by gravity, a single-acting system is usually enough. If it needs controlled movement in both directions, a double-acting system is required.
Conclusion
Mini hydraulic power units and hydraulic power packs are used in many machines that require strong, stable, and controlled motion. Common applications include dock levelers, lift tables, dump trailers, car lifts, tail lifts, material handling equipment, agricultural machinery, and industrial presses.
The right mini hydraulic power unit is not only a motor and pump assembly. It is a complete hydraulic power source designed around pressure, flow, control function, safety, and working environment.
For OEM manufacturers and equipment builders, choosing a suitable mini hydraulic power unit or hydraulic power pack can improve machine reliability, reduce maintenance problems, and make the whole hydraulic system more efficient.
